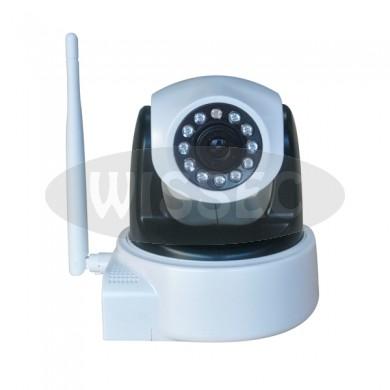

Description: Cloud eye Megapixel wireless WIFI network dome camera is widely used in different industrials, such as public security, government, finance, transportation, medical treatment, education, tourism, electricity, water conservancy, environmental protection, customs, commodity inspection, civil aviation, judicature, commerce, enterprises and various types of individual users
Features: 1.H. 264 video algorithm, Dual Stream design, Support mobilephone and PC remote view simultaneously
2.1/4 CMOS High definition image sensor, 720P HD resolution
3. Support WPS function, can connect with WIFI router simply by buttons of network cameras
4. Built-in 10/100M automatic ethernet interface and WIFI wireless connection mode
5. Built-in microphone, user can talkback, support two-way talk
6. Support PTZ control, Remote network rotate and flip
7. Support mobilephone remote view (Iphone, Android etc, can download IP Cam Viewer client software to view)
8. Support motion detection, Image record alarm, maximum support 32GB SD card
9. Though Email or Download pictures send to FTP to achieve motion detection function
10.3 levels management authority setting, to ensure the saftey of user
11. Built-in Network server, support remote view and management
12. Access way can be WEB access, Central Management surveillance, Mobilephone view access
Product Parameters
Specification:
|
Image Sensor | 1/4 Color CMOS Sensor | Video Compression | H. 264 main profile level 3 | Video resolution | 1280*720P, 640*480 (VGA) ,320*240 (QVGA) | Video Frames | 24 frames 720P, 30fps (VGA) ,30fps (QVGA) | Lens | 3.6mm/ 6mm optional | Angle | 72° or 90° | Picture inversion | Vertical / horizontal | Rotate parameters | Horizontal: 270° Vertical: 90° | Refresh frequency | 50Hz, 60Hz or Outdoor | Image adjustment | Brightness, contrast | Audio input | 1ch linear/ MiC input | Storage | Local SD card storageSD | Network input | PJ-45 port 10/100Mbps | Code rate | 802.11 -2M | 802.11b-11M | 802.11g-54M | 802.11n-150-600M | Wireless safety
performance | 64/128bit WEP, WPA, WPA2 encryption | Protocol | HTTP, FTP, TCP/ IP, UDP, SMTP, DHCP, DDNS, UPnP | Wireless standard | IEEE 802.11b/ g/ n | IR distance | IR LED, 20M | Power | DC 5V/ 2.0A | Consumption | 5W (max) | Temperature | 0°~55°C (14°F~122°F) | Himidity | 20%~85% Noncondensing | Storage temperature | -10°~55°C (14°F~122°F) | Storage himidity | 0%~90% Noncondensing | Processor | 2.0 GHz or above (suggest 3.0 GHz) | RAM | 256MB or above (suggest 1.0 Gb) | Display card | 64M or above | Operation system | Microsoft Windows 2000/ XP/ Vista | Browser | IE6.0, IE7.0, IE8.0, firefox2.0, firefox3.0 |
|
