Brand Name:

Brand New

Model Number:

WI-DVRSYS4-A

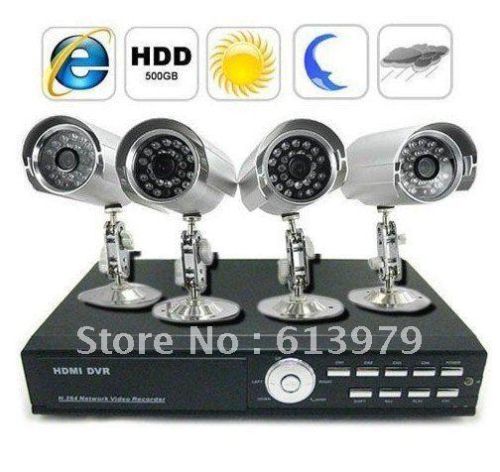

Product Description

Specifications:

• DVR Specifications:
• Main functions: Live display, recording, playback, remote access
• Operating system: Embedded LINUX
• Video display: Single camera or quadrant split screen
• Recording frame rate: 25 FPS Max
• Image quality: Low, Normal, High
• Recording output: MCG
• Modes:
  - Overwrite: Cycle / Stop on full
  - Recording: Continuous / Motion detection
• Playback: Single channel / 4 channels simultaneous
• RS-485 PTZ control
• Wired RJ-45 Ethernet
• Hard drive: HDD included
• Input:
  - Video: 4 Channel, BNC, 1.0Vp-p, 75 Ohms
  - Audio: 2 Channel single AV, Mono
• Output:
  - Video: 1 channel TV output, BNC, 1.0Vp-p, 75 Ohms
  - Audio: 1 Channel single AV
• Power supply: 12V, 5A
• Working humidity: 10% to 90%
• Dimension (W x L x H) : 319 x 227 x 50 mm
• Camera Specifications:
• It is waterproof
• Image sensor: Sharp 1/4 CCD
• Resolution: 420 TV Lines
• Lens: 3.6 mm
• Minimum illumination: 0 Lux (IR LED on)
• White balance: Auto
• Video output: 1Vp-p, 75ohm, BNC
• Shutter speed: 1/50
• IR distance: 50 m
• IR led: 24 x 3mm LED
• Cable Length: 18 M
• Dimension: dia. 82 x 130 (L) mm
• Power Supply: 12V, 500mA
• Network:
• Connection: RJ-45 Port (10 / 100M)
• MJPEG Compression
• IP Address: Static / DHCP
• Viewing option: Single / 4 channel
• Remote capture: Image / Video
• Capture format: BMP, AVI with Divx codec
• IE explorer only
• Approved: CE / FCC

Accessories:

• 4 x 18 m Cable
• 1 x Software CD
• 1 x User Manual
• 4 x Mounting Bracket
• 1 x Remote Controller
• 1 x Power Supply for DVR
• 4 x Power Supply for IR Camera

Unit Type:

piece

Package Weight:

6.500kg (14.33lb.)

Package Size:

20cm x 10cm x 12cm (7.87in x 3.94in x 4.72in)
