4CH HD CCTV Surveillance System Full D1 Security DVR 600TVL Indoor Night Vision Cameras

266 USD

add to cart

Item specifics

Brand Name:: Bran new

Model Number:: WI-DM4600H1

Product Description

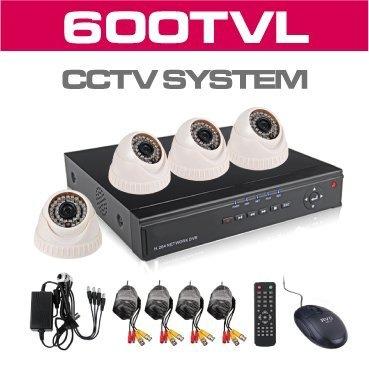

The CCTV Systems includes a 4 Channel ALL D1 H. 264 Real Time Surveillance Security DVR and

4pcs 600TVL HD indoor 36pcs IR LED Day&Night surveillance Cameras with IR CUT providing

everything you need to have your surveillance system up and running in your home or business quickly and easily.

DVR

Video Compression	H. 264
Video System	NTSC / PAL
Operation System	Linux Based
Video Input / Output	BNC 4-Channel Input / 1-Channel Output
Other Video Output	VGA
Audio Input / Output	RCA 2CH Input / BNC 1CH Output
Display Frame Rate	NTSC: 120 fps @ D1 / PAL: 100 fps @ D1
Display Resolution	NTSC: D1 (704 x 480) / PAL: D1 (704 x 576)
Recording Frame Rate	NTSC: 120 fps @4CH D1 / PAL: 100 fps @4CH D1
Record Resolution	Selectable: NTSC: D1 (704 x 480) ; CIF (352 x 240) / PAL: D1 (704 x 576) ; CIF (352 x 288)
Record Mode	Continuous / Time Schedule / Motion Detection
Network	RJ45, 10M/ 100M
Net Protocol	TCP/ IP, DHCP and DDNS
Remote Access	LAN or Internet Browsing
PTZ Control	RS-485
HDD Interface	SATA, Support between 320GB and 2TB
Playback Mode	Normal Play / Fast Forward / Fast Rewind/ Frame by Frame
USB	USB Backup / USB 2.0
Remote Control	IR Remote Control
Power Supply	DC12V, 2.5A

Camera

Camera Specification:
Image Sensor	1/3 Color CMOS
TV System	PAL/ NTCS
Effective Pixels	*NTSC: 811 (H) 508 (V) / PAL: 795 (H) x596 (V)**
Horizontal Resolution	600 TV-Lines
Lens	3.6mm
Number of IR LEDs	36 LEDs
Infrared Illumination (Night Vision)	up to 25M
Minimum Illumination	0.0 Lux
IP Rate	0
S/ N Ratio	50dB
Video Output	1.0Vp-p, 75ohms
Weatherproof	Yes
Operating Temperature	-25°F~122°F / -32°C ~50°C
Power	12V DC
Material	Metal Shell

Package included
1 x 4CH full D1 H. 264 Network Digital Video Recorder
4 x 1/3 inch color CMOS 600TVL 36IR Leds Weatherproof Cameras
4 x 20M Power Video Plug and Play Cable for CCTV Camera
1 x 12V/ 2000mA 4 Port Power Supply for CCTV Camera
1 x Mouse for DVR
1 x Remote Control for DVR
1 x DC12V Power Adapter for DVR
4 x Weatherproof Bracket for CCTV Camera
1 x English user guide
1 x CD

Packaging Details

Unit Type:: piece

Package Weight:: 5.500kg (12.13lb.)

Package Size:: 30cm x 20cm x 10cm (11.81in x 7.87in x 3.94in)
