Brand Name:

Brand New

Model Number:

WI-DVRSYS4-C

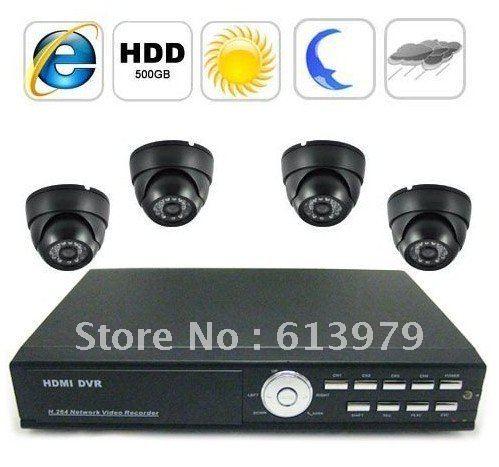

Product Description

Specifications:

• DVR Specifications:
• Operating system: Embedded LINUX
• Main function: Live display, Recording, Playback, Remote access
• Video display: Single camera or quadrant split screen
• Recording frame rate: 25 FPS Max
• Image quality: Low, Normal, High
• Modes:
  - Recording: Continuous / Motion detection
  - Overwrite: Cycle / Stop on full
• Recording output: MCG
• Playback: Single channel / 4 channel simultaneous
• RS-485 PTZ control
• Wired RJ-45 Ethernet
• Hard drive: 500GB HDD included
• Input:
  - Video: 4 Channel, BNC, 1.0Vp-p, 75 Ohms
  - Audio: 2 Channel single AV, Mono
• Output:
  - Video: 1 channel TV output, BNC, 1.0Vp-p, 75 Ohms
  - Audio: 1 Channel single AV
• Power supply: 12V, 5A
• Working humidity: 10% to 90%
• Dimension (L xW x H) : 319 x 227 x 50 mm
• Camera Specifications:
• Image Sensor: Sharp 1/4 CCD
• Resolution: 420 TV Lines
• Lens: 3.6 mm
• Minimum Illumination: 0 Lux (IR LED on)
• White Balance: Auto
• Video Output: 1Vp-p, 75ohm, BNC
• Shutter Speed: 1/50
• IR:
  - Distance: 35 m
  - IR Led: 24 x 3mm LED
• Cable Length: 18 M
• Power Supply: 12V, 500mA
• Dimension: dia. 107 (Base) x 85 (H) mm
• Network:
• Connection: RJ-45 pPort (10 / 100M)
• Compression: MJPEG
• IP address: Static / DHCP
• Viewing option: Single / 4 channel simultaneous
• Remote capture: Image / Video
• Capture format: BMP, AVI with Divx codec
• IE Explorer only
• Approved: CE / FCC

Accessories:

• 4 x 18 m Cable
• 1 x Software CD
• 1 x User Manual
• 4 x Bag of Screws
• 1 x Remote Controller
• 1 x Power Supply for DVR
• 4 x Power Supply for IR Camera

Unit Type:

piece

Package Weight:

6.500kg (14.33lb.)

Package Size:

20cm x 10cm x 12cm (7.87in x 3.94in x 4.72in)
