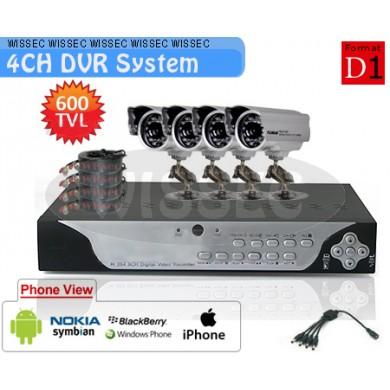

4CH H.264 FUll D1 1080P HDMI Port Network Standalone CCTV DVR 4pcs CCTV 600TVL 6mm Lens 24 Leds Outdoor IR CCD Camera Video System
4CH H.264 FUll D1 1080P HDMI Port Network Standalone CCTV DVR 4pcs CCTV 600TVL 6mm Lens 24 Leds Outdoor IR CCD Camera Video System
Quick Overview
1 x 4CH H. 264 FUll D1 Realtime Recording 1080P HDMI Port Network Standalone CCTV DVR Support Mobile Phone View, 4 x CCTV 600TVL 6mm Lens 24 Leds Night Vision Outdoor IR CCD Camera, 4 x 20m Power / Video All in One Cable, 1 x 4CH Power Adapter
Details
Discription:
The cctv DVR System with 1pcs 4CH H. 264 FUll D1 Realtime Recording 1080P HDMI Port Network Standalone cctv DVR Support Mobile Phone, 4pcs CCTV 600TVL 6mm Lens 24 Leds Night Vision Outdoor IR CCD Camera, 4pcs 20m Power / Video All in One Cable and 1pcs 4CH Power Adapter. It can be applied in the bank, telecom, electric power system, judicial system, transportation, intelligent housing, factory, storehouse, water conservancy , and so on
Feature:
- video compression standard format for h. 264
- Two USB interface, one for data backup, one for the mouse operate
- 16 true color translucent graphical menu interface, the menu options annotation tip
- 4 road synchronous playback
- Two levels of user authority management
- Support network to the machine split-screen real-time browsing, parameter setting, copy or video playback
- Support Mobile Phone View (iPhone, Blackberry, Android, Symbian Windows Mobile)
- Support English, Spain, Italy, Greece, Russia, Portugal, Japan, Romania language
Specification:
| Audio input | Analog video input | 4 CH, BNC interface (level: 1.0 Vp - p, impedance: 75 Ω) , PAL/ NTSC adaptive |
| Audio in | 4 CH, RCA interface (level: 2.0 Vp - p, impedance: 1 k Ω) | |
| AV output | CVBS output | 2 CH, BNC interface (level: 1.0 Vp - p, impedance: 75 Ω) |
| Resolution: PAL: 704 * 576, NTSC: 704 * 480 | ||
| VGA output | 1 CH, resolution: 800 * 600, 1024 * 768, 1280 * 1024 | |
| HDMI output | 1920*1080P | |
| Audio output | 2 CH, RCA interface (linear level, impedance: 600 Ω) | |
| Video coding parameters | Video compression standard | H. 264 |
| Video View/ Record/ Playback/ resolution | D1 (PAL: 704 * 576, NTSC: 704 * 480) | |
| Video View/ Record/ Playback/ frame | D1 (PAL: 100/ Fps, NTSC: 120/ fps) | |
| Video code rate | Image quality adjustable, variable code flow, fixed code flow optional | |
| Code flow type | Compound flow | |
| Audio compression standard | G. 711 | |
| Double code flow | support | |
| Synchronous playback | Support 4 CH | |
| Preview display | Support the automatic wheel patrol, PIP display, electronic amplification | |
| Video management | Video mode | Boot automatically continuous, timing video, mobile detection, trigger alarm, remote client video |
| Video save | The hard disk, the network backup | |
| backup | Support U disk/ mobile hard disk backup, network backup | |
| Hard disk drive | type | 1 SATA interface |
| Maximum capacity | Each interface support capacity greater than 2 TB hard | |
| network | Network function | Support mobile monitoring, real-time network monitoring, remote DVR parameter Settings |
| Network protocol | Support TCPIP/ UDP/ DHCP/ DNNS/ PPPoE agreement, etc | |
| External interface | Network interface | 1 RJ45 10 m / 100 m adaptive etheric WangKou |
| Serial interface | 1 standard RS - 485 serial interface; Support PELCO - P and PELCO - D agreement | |
| USB interface | 2 USB 2.0 | |
| Alarm input | 4CH | |
| Alarm output | 1CH | |
| power | DC12V/ 3A | |
| Power consumption (excluding hard disk) | ≤10W | |
| Working temperature | 0℃--+55℃ | |
| Work humidity | 10%--90% | |
| weight | 2.33KG |
The camera offers up an ultra high resolution of 600 TV lines will allow u to have the best image quality there is on the CCTV industry, for a 24 Leds infrared night vision Waterproof security IR camera, 10-35 meter IR viewing distance, 6mm fix lens, wide view angle 45° , The camera it is ideal for indoors and Outdoors.
Features:
- High resolution: 600TVL
- 24PCS Led, 20M Night working distance
- Built in 6mm lens, wide view angle 45°
- Low illumination: 0.1Lux (F1.2, AGC ON) ,0 Lux with IR
- IR-Cut, Automatic color turn Black&white, Day&night working
- AWB Automatic White Balance, image color near true
- Back light compensation
- High SNR, Image clear & please
- Automatic electronic shutter, adapt different environment
- Automatic Electronic Gain function, Brightness adaptive
- IP66 waterproof design level
Specification:
- Image sensor: 1/3 DIS ICR
- Signal System: PAL/ NTSC
- Effective pixels: 720 (l) *480 (v)
- Synchronous system: Inter-sync
- Video Output: 1Vp-p Composite Output (75Ω/ BNC)
- Horizontal Definition: 600TVL
- Minimum illumination: 0.1Lux @ (F1.2, AGC ON) , 0 LUX with IR
- Day&night model: ICR infrared filter chip
- SNR: ) 52 dB
- White Balance: Automatic
- AGC: Automatic
- BLC: Automatic
- Electronic shutter: 1/25 (1/30) s - 1/15000s
- Lens: Built in 6mm lens
- Infrared distance: 15-20M
- LED: 24PCS
- Led size: Φ5mm
- Protection grade: IP66
- Working Voltage: DC12V+10%
- Power consumption: 5W MAX (IRCut, 7.5W MAX)
Item Include:
- 1 x 4CH H. 264 FUll D1 Realtime Recording 1080P HDMI Port Network Standalone CCTV DVR
- 1 x USB Mouse
- 1 x Power Adapter
- 1 x CD
- 1 x User Manual
- 1 x Remote Control
- (The Item Doesn't Contain Hard Disk)
- 4 X CCTV 600TVL 6mm Lens 24 Leds Night Vision Outdoor IR CCD Camera
- 4 X Bracket
- 1 x AC/ DC Adapter
- 4 x 20m Power / Video All in One Cable
