Brand Name:

Brand New

Model Number:

WI-DVRSYS4

Product Description

Specifications:

• Function: Standalone DVR Surveillance System
• DVR Specification:
• Video System: NTSC, PAL
• Video Compression: H. 264
• Number of Camera Inputs: up to 4
• Video Display: Single or 4 Cameras
• Storage: Internal 500GB Hard Disk
• Image Resolution (Real time monitoring) :
  - NTSC: 704 x 576
  - PAL: 720 x 576
• Playback Resolution: CIF
• Video:
  - Video Input: 4 x BNC Connector, 1.0V p-p/ 75 Ohm
  - 1 channel BNC TV video output, BNC, 1.0Vp-p, 75 Ohms
  - One HD VGA video output
  - Video frame Rate: PAL: 1 ~ 25f/ s, NTSC: 1 ~ 30f/ s
• Stream Type:
  - Video streaming
  - Audio and Video Streaming
• Dual-stream: Support
• Audio:
  - Audio Input: 1 Channels
  - Audio Output: 1 Channels
  - Audio Compression Standard: ADPCM
  - Audio Compression Rate: 32kbps
• Play Back: 4 channel Playback
• Communication Interface: RJ45 10M/ 100M and RS485
• Hard Disk Interface: Support one hard Disk, max for 2TB.
• USB Interface: 2 USB Interface, Support USB Mouse, U Disk, USB Mobile Hard Disk
• VGA Interface: Support the highest resolution 1024 x 768, 60Hz
• Alarm Input: None
• Alarm Output: None
• Power: DC 12V
• Temperature: 0 ~ +60 Degrees Celsius
• Humidity: 10% ~ 90%RH
• Dimension (mm) : 250 x 238 x 45mm
• Surveillance Camera Specifications:
• Waterproof Night Vision Security Camera
• Material: High quality alloy
• Image Sensor: 1/4 inch Color Sharp CCD sensor
• Horizontal Resolution: 420 TV lines
• Lens: 3.6mm
• Effective Pixels:
  - PAL: 752 (H) x 582 (V)
  - NTSC: 512 (H) x 492 (V)
• IR LED:
  - Quantity: 24
  - Wavelength: 850 nm
• IR Viewing Distance: 20 meters in the nighttime (IR ON)
• Minimum Illumination: 0.000 LUX at night (IR LED ON)
• Video Output: 1Vp ~ p. 75 Ω
• Waterproof Level: IP66
• Shutter Speed: 1/50 ~ 1/100000 second
• White Balance: Auto
• Backlight Compensation: ON
• S/ N Ratio: ) 48db
• Sync Speed: Internal
• Scanning mode: 2: 1
• CDS Sensor: YES
• Audio: No
• Operating Temperature: -20 ~ 50 Degrees Celsius
• Operation Humidity: RH95%
• Connection Type: BNC
• Power Requirement: DC 12V, 1000mA
• Operation Temperature: -10 ~ 40 degrees Celsius
• Surveillance camera color: Black
• Camera Size:
  - Diameter: 50mm
  - Length: 85mm
• Approved: CE / FCC
• After Sales Service: 1 year warranty

Accessories:

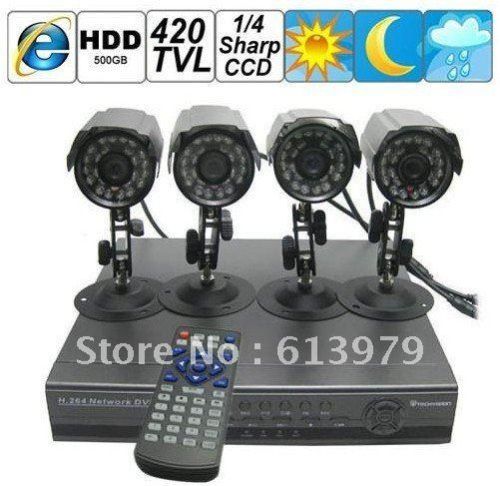

• 1 x 4CH DVR
• 1 x Mouse for DVR
• 1 x Remote Control For DVR
• 1 x Power Adapter
• 4 x Camera
• 4 x Bracket
• 4 x 20M Power Video Plug and Play Cable
• 1 x User Manual
• 1 x Disk Drive
• 1 x 4CH AC100-240V to DC12V Power Supply Adapter

Unit Type:

piece

Package Weight:

7.000kg (15.43lb.)

Package Size:

20cm x 10cm x 12cm (7.87in x 3.94in x 4.72in)
