8CH Raysharp H.264 Real-Time Network Security CCTV Digital Video Recorder

210.99-226.26 USD

Quick Overview

Product Images (1/11)

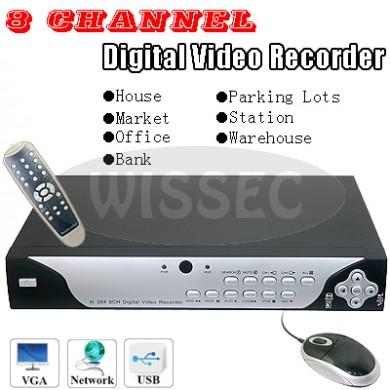

8CH Raysharp H. 264 Real-Time Network Security CCTV Digital Video Recorder

8 Channel Real-time Standalone Network DVR, H. 264 Surveillance CCTV Digital Video Recorder, Support Network, Support PTZ Control, USB Removable SATA HDD, PAL D1: 704 X 576, NTSC D1: 704 x 480.

Details

Specifications:

Video System:		NTSC/ PAL
Compression Format:		Video: H. 264/ Audio: 8kHzx16bit ADPCM
Video output:		8-CH BNC input/ 2-CH BNC output/ 1 VGA output
Audio input/ output:		1-CH RCA Audio input, 1-CH RCA Audio output.
Display resolution:		D1: 704 X 576 (PAL) 704 x 480 (NTSC)
Frame rate:		single CH PAL: 25 fps, NTSC: 30 fps
Recording resolution:		PAL: CIF (352 X 288) /NTSC: CIF (352 X 240)
Recording frame rate (shared) :		PAL: 200 fps@CIF/ NTSC: 240 fps@CIF
HDD:		1 SATA HDD, up to 1024GB: USB removable HDD
Video Mode:		Aways/ schedule/ manual/ motion detection/ sensor triggered
Record Pack Time:		15/30/60min
Video backup:		USB flash disk / removable HDD, USB burner, network backup to AVI file format
Playback mode:		PLAY / SLOW/ FWD/ Frame by Frame
Alarm I/ O:		8-CH alarm input, 1-CH alarm output
PTZ control:		built-in RS-485 port, supports PELCD-P & PELCD-D
USB 2.0 port :		supports USB mouse, removable HDD, USB flash drive to backup to AVI file and upgrade system
Ethernet:		One RJ-45 10M/ 100M self-adaptable ethernet interface
Network Protocol:		Support TCP/ IP, DHCP, UDP, DDNS, PPPOE network Protocol
Network Function:		Support preview live display remotely via mobile phone and real time monitoring via IE-based browser and/ or network, and support patameter setting of DVR remotely
Power consumption:		10~15W (exclude HDD)
Power Adapter:		DC 12V / 3A
Working Temperature:		50°F to 104°F (10℃ to 40℃
Working humidity:		10%~90%

Feature:

1. H. 264 video compression format, supports D1, HD1, CIF resolution
2. ADPCM audio compression format
3. windows Graphical interface
4. BNC and VGA video out ports
5. supportremote live viewing via 3G mobile network
6. supports sending email alerts when motion is detected by system
7. triplex (recording, playback and net transmitting at the same time)
8. supports USB mouse, IR remote control operation
9. rear USB2.0 ports for backup, upgrade and mouse opetation
10. Supports Double Encode bit network transmission
11. The video package time is adjustable
12. Multiple alarm record mode
13. Multiple language OSD
14. Supports auto maintenance

Item Includes:

1 x 8-channel Real-time Network H. 264 DVR
1 x Remote control
1 x mouse
1 x Power
