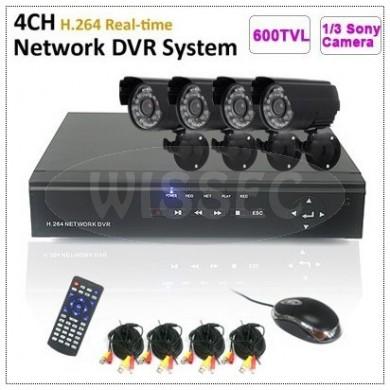

4CH H.264 Real-time Recording Network DVR System 600tvl Weatherproof IR Day&Night Camera

4CH H.264 Real-time Recording Network DVR System 600tvl Weatherproof IR Day&Night Camera

196 USD

add to cart

Quick Overview

4CH H. 264 Real-time Recording Network DVR System 600tvl Weatherproof IR Day&Night Camera.

Details

4 Channel H. 264 Network Embedded Digital Video Camera DVR System Support Up To 2TB Hard Drive, Come with a dynamic domain name, Including 4PCS 1/3inch SONY CCD 600TV Line, 3.6mm Lens 24PCS IR Led Outdoor Camera


Features:

DVR Features:

video compression format is the second-generation H. 264 (Main Profile) ;
  • Support Up to 1x 2TB
  • support the six operation working simultaneously, recording, playback, network transmission, backup, mobile phone surveillance and interface operating
  • Support Window Mobile, Symbian, Android, iPhone, BlackBerry
  • come with a dynamic domain name, don't need to apply for it. Automatically through the router, do not need to manually map the ports.




Camera Features:

1/3inch Sony CCD
  • 600 TV Lines Horizontal Resolution
  • 3.6mm Lens
  • 24PCS IR Leds, 15-20M IR Distance
  • IP66 IP Rate


Specification:
Model: WI-4DVR16
Video Compression H. 264 (Main Profile)
Picture Standard PAL: 720 x 576 / NTSC: 720 x 480
Resolution Encoded CIF
Video Input BNC x 41.0Vp-p/ 75Ω
Video Output BNC x 1, VGA x 1
Recording Frame Rate PAL: 100FPS, NTSC: 120FPS
Audio Input RCA x 1
Audio Output RCA
Audio encoded standard ADPCM
Audio encoded Rate 32kbps
Record Mode Manual record, motionrecord and externa alarm record
Mult Mode Record, Play, Internet
Playback 4CH playback simultaneously
Network Port RJ45 10M/ 100M
PTZ Port RS485
Hard Disk Port 1 SATA up to 2TB
USB Port 2 x USB port, Support Mouse, U disk and USB portable hard drive disk
VGA Port 1 x VGA port, Surpport up to 1024*768/60Hz Resolution
Power Supply 12V/ 3A DC
Operational Temperature 0 Degree C~+60 Degree C
Operational Humidity 10%~90%
Camera Specification:
Image Sensor 1/3 inch Sony CCD
Effective Pixels NTSC: 656 (H) x 492 (V)
Horizontal Resolution 600 TV Lines
Lens 3.6mm
Min. Illumination 0.0 Lux
IR Led 24PCS
BL/ WB/ AGC Auto
IP Rate IP66
S/ N Ratio ) 45.6dB
Shutter Speed 1/50 (1/60) ~1/1000.000s
Item Includes:
  • 1 x 4CH H. 264 Network Digital Video Recorder

  • 1 x Mouse for DVR

  • 1 x Remote Control for DVR

  • 1 x DC12V1.5A Power Adapter

  • 4 x 1/3inch Sony CCD 600TVL 24IR Leds Weatherproof Camera

  • 4 x Weatherproof Bracket

  • 4 x 20M Power Video Plug and Play Cable for cctv Camera

  • 1 x 4CH AC100-240V to DC12V Power Supply Adapter for cctv
