Specification:

• Horizontal Definition: 420TV Lines
• IR LEDs: 12 PCS
• Image Device: 1/4 Inch SHARP CCD
• Power Supply: DC 12 V
• Motor Output: Max 2W
• Rotation Angle (Horizontal) :
  - (manual) 0degree to 360degree
  - (auto) 30degree to 350 degree
• Rotation Speed: 3.5 degree/ s to 20 degree/ s
• Dimension: 105 x 80mm
• Operation Temp: -10degree C to +50 degree C
• Illumination: 1.0 Lux
• Remote Distance: 5m
• Lens: 3.6mm

Features:

• 1. The camera can revolve automat-ically or manually, Make wide range scanning.
• 2. The revolving speed and rotatable angle can be adjusted easily through owner controller.
• 3. Input power supply is DC 12 V (shared with camera) .
• 4. The dome scanner can be set auto-revolving angle by pressing ANGLE button in auto-revolving module. There are six selections. They are 30 degree, 60 degree, 90 degree, 180 degree, 270 degree, and 350 degree, respectively.
• Please Note: Remote Control only for Pan Adjustment

Item Includes:

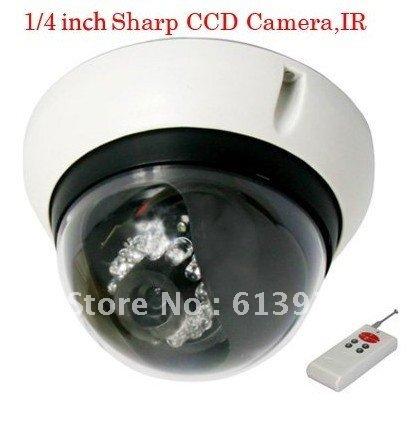

• 1 x 1/4 Inch Sharp CCD DOME Security Camera
