Technology:

Infrared

Type:

Video Camera

Brand Name:

Brand New

Sensor:

CCD

Special Features:

Waterproof / Weatherproof

Model Number:

WI-838

Specifications:

• Color: Silver
• Pickup Device: 1/4 inch Sharp Color CCD
• Horizontal Resolution: 420TVL
• CCD Pixels: 768 (H) X 494 (V)
• Electronic Shutter: PAL: 1/50~1/100000S NTSC: 1/60~1/100000S
• MIN. Illumination: 0.8Lux/ F2.0
• Lens: 6mm
• TV System: NTSC
• Infrared LED: 36 pcs
• S/ N Ratio: ) 48dB (AGC off)
• White Balance: Auto
• Video Out: 1.0Vp-p, 75BNC
• Image Size: 4.9mm x 3.7mm

Features:

• Base on 1/4 inch SHARP COLOR CCD sensor.
• Built-in 36 Super IR-LEDs. W
• Economical Solution, includes Board Lens.
• Day& Night Auto Switching, Weatherproof.
• High sensitivity, low smear, excellent anti-blooming, and high S/ N ratio.
• Plug & Play. Installs easily and is suitable DIY (Do It by Yourself) .
• Built-in an Infrared Illuminant to assist for cameras in low illumination environment.
• Have small volume, lightweight, high integrative level, easy and convenient to fix and use.
• Long life luminary with using special wavelength Infrared LED.
• Suitable for surveillance of supermarket, mall, shop, resident area, bar and so on.

Precautions:

• Do not attempt to disassemble the camera.
• Handle the camera with care.
• Do not use strong or abrasive detergents when cleaning the camera body.
• Never point the camera toward the sun.
• Do not operate the camera beyond its temperature, humidity or power source ratings.

Item Includes:

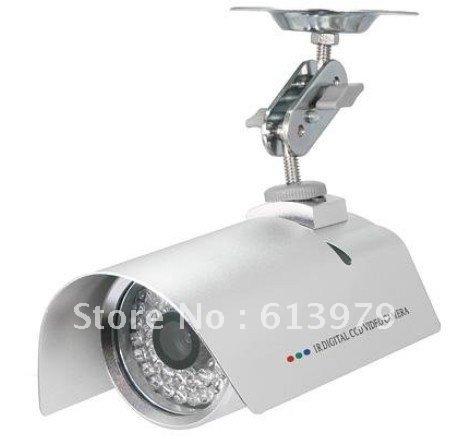

• 1 x 1/4 inch Sharp Chip, 420 TV Line, 36 LED Infrared Day& Night Dustproof Security CCTV Wired CCD Color Camera
• 1 x Bracket
• 3 x Screws

Unit Type:

piece

Package Weight:

0.600kg (1.32lb.)

Package Size:

21cm x 21cm x 20cm (8.27in x 8.27in x 7.87in)
