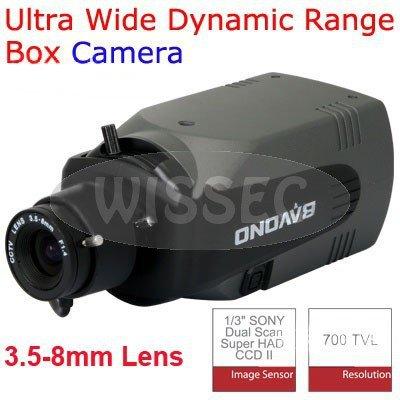

Ultra High Resolution Wide Dynamic Range Box Camera
Item specifics
- Technology:
- Infrared
- Brand Name:
- Brand new
- Sensor Brand:
- SONY
- Sensor:
- CCD
- Style:
- Bullet Camera
- Model Number:
- BVO616S
- Type:
- Box Camera
Product Description
Features
- 1/3 Sony Ex-view HAD CCD II Image Sensor
- Digital Wide Dynamic Range
- Horizontal resolution of up to 700 TVL
- Sens-up X1024 & minimum illumination of 0.0001 lux
- Built-in automatic IR cut filter
- Day/ night mode to enable 24 hour continuous surveillance
- 8 times digital zoom
- 48 zones motion detection
- 24 zones privacy masking
- Intelligent 3D DNR for reducing HDD capacity
- Built-in OSD
- Built-in balun
- Supports dual power supply: DC 10V - 40V / AC 7V - 40V
Specifications
| Model | BVO616S | |
| Video Standard | NTSC | PAL |
| Image Sensor | SONY 1/3 Ex-view HAD CCD II | |
| Total Picture Elements | 1020 (H) X 508 (V) | 1020 (H) X 596 (V) |
| Effective Picture Elements | 976 (H) X 494 (V) | 976 (H) X 582 (V) |
| Horizontal Resolution | 700 TVL | |
| Min. illumination (approx.) | Color: 0.1 Lux at F1.2 (50IRE) / 0.0001 Lux (Sens Up On) B/ W: 0.08Lux at F1.2 (50IRE) / 0.00008 Lux (Sens Up On) | |
| Synchronizing System | Internal, AC Line Lock | |
| Video S/ N Ratio | 52dB | |
| Digital Zoom | 8X | |
| Day / Night | AUTO / DAY / NIGHT / EXT1 / EXT2 | |
| High Speed Shutter | 1/60 (1/50) ~ 1/15K | |
| Flickerless Mode | ON / OFF | |
| Digital Wide Dynamic Range | OFF / HIGH / MID / LOW | |
| Auto Gain Control (AGC) | Off ~ 36dB (3dB Unit) | |
| IR-Cut Filter | Built-in | |
| Iris | ALC (DC Auto Iris) / ELC (Off/ On ( ~ 1/200K sec) ) | |
| Sens-up | X 1024 | |
| Smart IR | OFF / ON | |
| White Balance | ATW1 / ATW2 / AWC / MANUAL / INDOOR / OUTDOOR | |
| Digital Noise Reduction (2D+3D) | HIGH / MID / LOW | |
| Camera ID | OFF / ON (Max. 20 char per line) | |
| Motion Detection | 48 Zones | |
| Privacy Masking | 24 Zones | |
| Backlight Compensation (BLC) | OFF / BLC / HLC | |
| Options | DIS, PAN/ TILT | |
| Video Output | VBS 1.0V p-p (75ohm Terminated) | |
| Fast Connection | Built-in Balun | |
| OSD Language | English / Simplified Chinese / French / Portuguese / Spanish / Japanese / German / Russian | |
| Power Input | DC 10V - 40V / AC 7V - 40V | |
| Power Consumption | Less than 1.5W | |
| Operating Temperature | -10°C ~ +50°C | |
| Operating Humidity | Less than 90% | |
| Shell Material | Metal | |
| Dimensions (mm) | 107 x 61 x 55 | |
| Gross Weight (g) | 531 | |
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 1.800kg (3.97lb.)
- Package Size:
- 20cm x 20cm x 20cm (7.87in x 7.87in x 7.87in)
