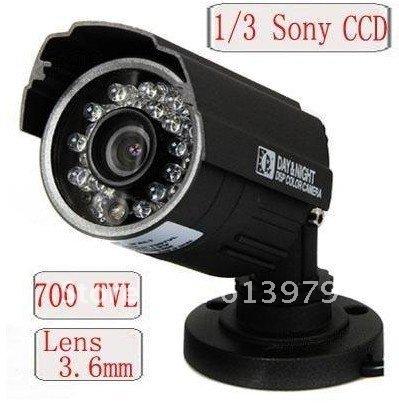

1\3 SONY Super HAD CCD II 700TVL High Resolution 3.6mm Lens 21 Leds OSD Menu 2D-DNR waterproof IR CCD Camera
1\3 SONY Super HAD CCD II 700TVL High Resolution 3.6mm Lens 21 Leds OSD Menu 2D-DNR waterproof IR CCD Camera
Item specifics
- Technology:
- Pan / Tilt / Zoom
- Brand Name:
- Brand New
- Sensor Brand:
- Sharp
- Sensor:
- CCD
- Special Features:
- Waterproof / Weatherproof
- Style:
- Box Camera
- Model Number:
- WI-CCD700
Product Description
Horizontal Resolution
Horizontal Resolution is one of the key factors in assessing the quality of cameras expressed in Television Lines (TVL) . Optical low-pass filters are used in Bavono cameras to eliminate color aliasing. Serial Signal Processing and image enhancement technology deliver a high resolution of 700 TVL. The image quality is further enhanced via advanced image processing techniques and special algorithms.
Electronic Shutter
Electronic Shutter ensures clarity of objects in high speed motion. Shutter speed is directly proportional to image quality.
Specification:
Image sensor | 1/3'sony Ex-view HAD II CCD |
pixel | NTSC: 976 (H) X508 (V) ; 976 (H) X596 (V) |
Scanning System | 2: 1 Interlace |
Synchronization | Internal / External Sync |
OSD | Yes |
Video Output | 1.1V p-p/ 75ohm |
High Resolution | 700TV Lines |
S/ N Ratio | More than 50dB |
Min. Illumination | Color: 0.1Lux; B/ W: 0.01Lux |
Shutter Speed | Auto: 1/60-1/100000sec (NTSC) ;1/50-1/120000sec (PAL) Fixd: 1/501/1201/2501/500.1/10001/20001/40001/10000sec |
White Balance | ATW/ Push/ User1/ User2/ AntiCR/ Manual/ Push LockSelectable |
BLC | BLC/ HLS (Head-light Supression) Selectable |
ATR | On (Brightness, Contrast adjustable) /OFF |
Gain Control | 6-44.8 dB Adjustable (Manual Shutter, AGC) |
2D-DNR | On/ OFF |
Motion detection | On/ OFF (4Zone) |
Privacy Masking | On/ OFF (4Zone) |
Mirror | On/ OFF |
Day and Night | Color/ B and W/ Auto Selectable |
Image Adjustable | Brightness/ Contrast/ Sharpness/ Hue/ Gain Adjustable |
Lighting Proof | Multi-level Lighting Proof |
Power | DC 12V |
IR LED | 21 IR |
IR Distance | 10-15m |
Built-in Lens | 3.6mm |
Weatherproof Standard | Ip66 |
Operating Environment | Temp.-10degree C to 50 degree C/ RH 95% Max |
Item Includes:
- 1 x 1/3 SONY Super HAD CCD II 700TVL High Resolution 3.6mm Lens 21 Leds OSD Menu waterproof IR CCD Camera
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 1.200kg (2.65lb.)
- Package Size:
- 20cm x 10cm x 10cm (7.87in x 3.94in x 3.94in)
