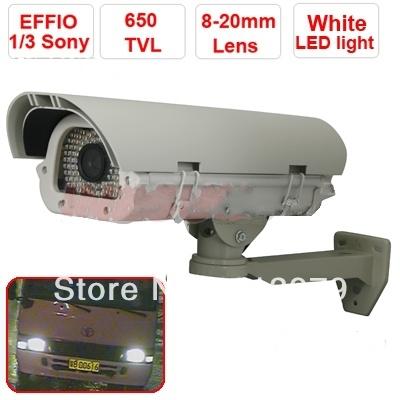

Profession CCTV 650TVL Effio 8-20mm Lens 90 Leds OSD Car plate number capture IR Camera

Profession CCTV 650TVL Effio 8-20mm Lens 90 Leds OSD Car plate number capture IR Camera

270 USD

add to cart

Item specifics

Technology:
Infrared
Type:
Video Camera
Brand Name:
Brand new
Sensor Brand:
Sony
Sensor:
CCD
Style:
Box Camera
Model Number:
WI-JKDL01

Product Description

Sony CCD Effio, 650 TVL, Deluxe full aluminum alloy oxidation, car plate capture, strong light inhibition, 8-20mm lens, 30m distance, color photo taking in the evening, 5 modes choices (manual) , 90 LED, unique double glass design at the front, thunderproof design, Glare inhibition function.

Introduction:


The camera adopts 1 / 3 SONY CCD sensor and DSP (digital signal processing) technology, with high-resolution and high sensitivity; The intensity of auxiliary lights and glare inhibition (Halo shrinkage) can be controlled by the key control. The intensity of auxiliary light is continuously adjustable; Five modes for choice, easy for testing and setting. Use special auxiliary lights, can capture clear and color image of lisence plate camera at night.
It applies to toll station, mount, entrances and exits of parking, traffic lights, and other monitoring sites, which can effectively capture license plates of passing cars and license plates of vehicles traveling on the road and vehicle identification.


Specification:

Model

JK-DL09H

Image Sensor Device

1/3'SONY HAD CCD

Effective Pixels

792 (H) *582 (V)

System of Signal

PAL

Horizontal Resolution

650 TV Line (color )

Minimum Illumination

0.01lux at F1.2 (color)

S/ N ration

More than 48dB

Electronic shutter

1/50-1/10000/ sec

Electronic shutter control

On/ Off Switchable

Backlight Compensation

On/ Off Switchable

Auto gain control

On/ Off Switchable

Color

color (if illumination (1 Lux, auxiliary power on automatically)

auxiliary lights available distance

1m~30m

Automatic Iris drive

f=8-20mm auto IRIS million hi-resolution lens

Video output

1.0Vp-p, 75

Power supply

DC 12V

Operating temperature

-10°c-+50°c

Dimension

15.6 inch



Installation:

coaxial line.

  • Connect to DC12V power supply, if the upper casing is open, the indicator light is on. (D4) .
  • When the image appears in the monitor, adjust the focus and Iris to get clear image.
  • Cover the upper casing, lock the back screw.
  • Fix the screw arbor of bracket well with holes at the bottom of camera.



Troubleshooting:


If there is any problem in the camera, please try to solve it as below, if not, contact us.

Trouble

Solution

No video output

Check the power supply and power wire, video wire, check if the auto Iris is suitable.

Image is dark

Check the working mode and intensity of glare inhibition

Image is obscure Check the lens surface and focus if it is well focusing well.
Image whitish

Adjust DC-LEVEL drive output level

Image flashing

Adjust DC-LEVEL drive output


Notice:

Please use it in clean, dry, little dust environment to lengthen lifespan.
Don't use it in environment that temperature ) 50°c, handle with care.

Camera control and setting

This camera is working at five different modes, select different working mode by key UP/ DOWN. Or through RS485. (not standard equipment)

  • Five modes for choosing:
    Mode 1) 120km/ hour
    Mode 2) 80 km/ hour
    Mode 3) 40 km/ hour
    Mode 4) Standard mode
    Mode 5) Glare inhibition mode
  • thunder-proof design



Item Include:

  • 1 x Road dedicated all in one camera
  • 1 x Bracket

Packaging Details

Unit Type:
piece
Package Weight:
1.800kg
Package Size:
40cm x 15cm x 13cm
