Technology:

Pan / Tilt / Zoom

Brand Name:

Brand New

Sensor Brand:

Sharp

Sensor:

CCD

Special Features:

Waterproof / Weatherproof

Style:

Box Camera

Model Number:

WI-CCD420

Product Description

Specifications:

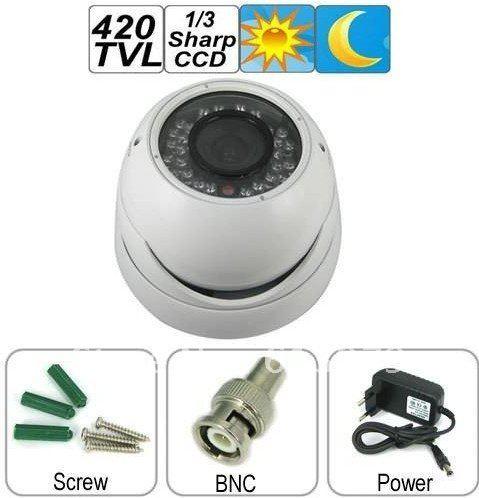

• Function: 1/3 Sharp CCD 420 TVL surveillance IR camera
• Image Sensor: 1/3 Sharp CCD image sensor
• Horizontal Resolution: 420 TV Lines
• Main Features:
  - You can adjust the focal distance depend on your request
  - Low consumption and stable performance for long time using
  - With portable dome design for your convenient carry
  - Imaging is very good, which make the video clarity
  - Small in size for your convenient carry
  - Support night vision for 10m
• Vandal proof cast metal casing
• With two screws for you to adjust the focal distance manual
• You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter
• Infrared Switch: Automatically turn on in the night
• 4mm - 9mm variable focus
• Minimum Illumination: 0 Lux, F1.2
• Effective Pixel:
  - PAL: 500 x 582
  - NTSC: 510 x 492
• Scanning System: PAL/ NTSC
• Scan frequency:
  -PAL: 50Hz
  -NTSC: 60Hz
• Angular Field: 40 to 90 Degree
• White Balance: Auto
• Video Output: BNC
• S/ N Ratio: 48dB
• Max Range for Objects:
  - Night time: 10m
  - Day time: 20m
• Working Temperature: -20 to 60 degree C
• Working consumption: DC 12V, 1000mA
• Color: White
• Dimensions:
  - Diameter: 35mm
  - Height: 70mm
• Approved: CE / FCC
• After Sales Service: 1 Year Warranty
• Manufacturer: SecurityIng

Accessories:

• 1 x Power Adapter
• 1 x BNC
• 1 x Screws
• 1 x Bracket
• 1 x Manual

Unit Type:

piece

Package Weight:

0.650kg (1.43lb.)

Package Size:

20cm x 30cm x 30cm (7.87in x 11.81in x 11.81in)
