Technology:

Infrared

Type:

Video Camera

Brand Name:

Brand New

Sensor Brand:

SONY

Sensor:

CCD

Special Features:

Vandal-proof

Style:

Dome Camera

Model Number:

WI-420IR

Specification:

• Horizontal Definition: 420TV Lines
• IR LEDs: 12 PCS
• Image Device: 1/3 Inch Sony CCD
• Power Supply: DC 12 V
• Motor Output: Max. 2W
• Rotation Angle: Horizontal: (manual) 0~360. (auto) 30~350
• Vertical: 0~90
• Roation Speed: 3.5/ s~20/ s
• Dimension: 105x80mm
• Operation Temp: -10~+50

Features:

• 1. The camera can revolve automat-ically or manually, Make wide range scanning.
• 2. The revolving speed and rotatable angle can be adjusted easily through owner controller.
• 3. Input power supply is DC 12 V (shared with camera) .
• 4. The dome scanner can be set auto-revolving angle by pressing ANGLE button in auto-revolving module. There are six selections. They are 30, 60, 90, 180, 270, and 350, respectively.

Item Includes:

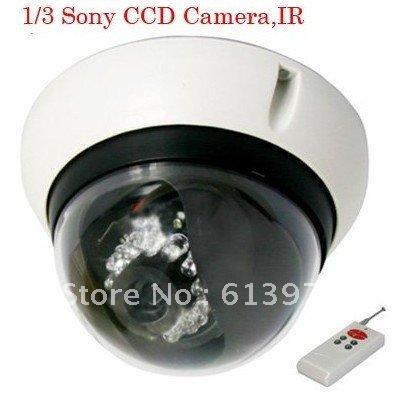

• 1 x 1/3 Inch SONY CCD DOME Security Camera

Unit Type:

piece

Package Weight:

0.500kg (1.10lb.)

Package Size:

21cm x 21cm x 20cm (8.27in x 8.27in x 7.87in)
