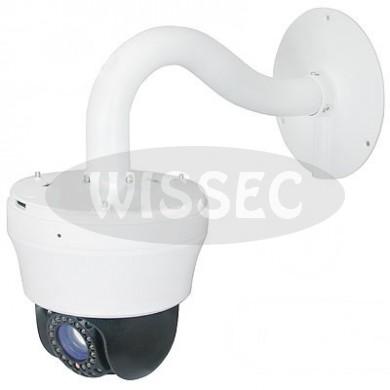

Security CCTV 10X 480TVL 256 Preset 3.8-38mm Indoor IR PTZ DOME Camera

Security CCTV 10X 480TVL 256 Preset 3.8-38mm Indoor IR PTZ DOME Camera

189.99-299.32 USD

add to cart

Quick Overview

PTZ Night&Day DOME Camera, 1/4 inch SUPER CCD Chip, 480TV Lines, 0Lux Min. Illumination, 10X 3.8-38.0mm Focus Lens, Horizontal and Vertical Min 0.01 Degree, Max 300 Degree/ S, Horizontal Scanning Range 360 Degree, Vertical 180 Degree, OSD Menu

Details

Features:
  • Make use of 10x HD color zoom camera as module
  • The indoor monitoring system shares a series of excellence, such as full-angle, non-blind, aesthetic, delicate, compact, high performance and easy installation
  • Rotate 360 degree in horizontal direction, driven by exact engine, operate stably with precise position-setting
  • The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance
  • Built-in OSD. Several control protocols are compatible and Baud rate is adjustable
  • Vertical 90 degree continuous monitoring after auto reversing 180 degree
Specifications:
  • Image sensor: 1/4inch SONY CCD
  • Signal model: PAL/ NTSC
  • Horizontal resolution: Color: 480TVL, B/ W: 600 TVL
  • Effective pixel: 752 (H) x 582 (V)
  • Minimum illumination: 0LUX (with IR) , Color to B/ W, with IR-CUT function
  • S/ N radio: ) =50dB (Enhanced)
  • Backlight compensation: On/ Off
  • White balance: Auto
  • Electronic shutter: 1/50 to 1/12000 seconds
  • Focus length: 3.8 to 38.0mm
  • Optical focus: 10X
  • Focus: Auto/ manual, take high-performance DSP to realize complete digit and ultra-high
  • speed focus function
  • Presets: 256
  • Patrol track: 4groups, each can record 100 actions
  • Cruise track: Total 30 presets can join cruise, can setting the presets residence time
  • Other scan: Support Horizontal scan, deuce area scan, scan random
  • Rotation range: Horizontal 360 degree unlimted rotation, Vertical 180 degree, auto reversal
  • Rotation speed: Horizontal and Vertical Min 0.01 degree, Max 300 degree/ S
  • Communications: RS-485, PELCO D, PELCO P
  • OSD: Yes
  • Temperature control: built-in
  • IR diatance: 20m
  • Power supply: DC12V/ 3A
  • Material: Aluminum shell
  • Work environment: -20 to +50 degree C. (95%RH
Item Includes:
  • 1*480TVL Superior Speed Water proof IR PTZ Camera
  • 1*Power Supply
  • 1*Bracket
