Specification:

• Image Sensor: 1/3 Sony CCD
• Video Output: 1.0Vp-p/ 75ohm BNC
• Scan Model: Interleaved 2: 1
• Horizontal Resolution: 420TVL
• Minimum Illumination: 0Lux
• S/ N Ratio: ) =48dB
• Auto Electronic Shutter: CCIR (1/50-1/100000s) EIA (1/60-1/100000s)
• Synchronous System: Row Lock/ Inner Synchronous
• Auto Gain Control: Automatic
• Backlight Compensation: Automatic
• Lens: 4-9mm
• White Balance: Automatic Tracing
• Power Requirement: 12V DC
• InfraredAttack Illumination: 0~5lUX
• Work Current: LED off 140mA, LED On 850mA
• Infrared Wavelength: 850nm
• Work Temperature: -20 to +60 degree C
• Effective Range: 20m

Features:

• Easy to install and assemble.
• High resolution, high sensitivity and high s/ n ratio.
• Low illumination, high quality image.
• CCD sensor can Prolong the work life of camera.
• With DSP and CCD chip, image is clear and stable.

Notices:

• Do not operate the camera under sun or strong light.
• Please ues correct power, do not expose the camera in rain or dusty Surrounding (except waterproof camera) .
• Do not touch the CCD surface with finger. If cleaning is in need, Please wipe it using soft cloth with a little of alcohol
• In order to prevent the camera from damaging, be careful shock to avoid strong shock.
• Only professional techning can install and test this camera in the allowed surrounding.
• Duringu use, if any error, cut off the power immediately and contact local distrbutr.

Item Includes:

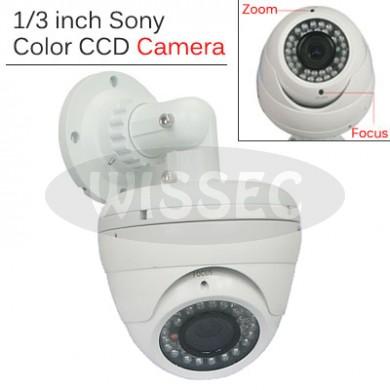

• 1x 7307 sony CCD camera
