Introduction:

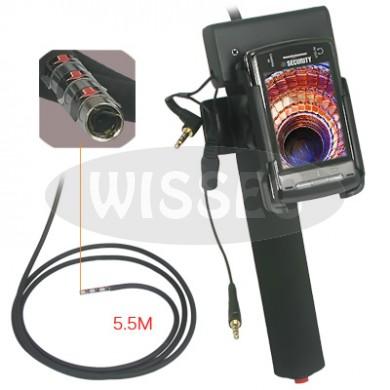

This snake scope is an ergonomic handheld video endoscopic system with robust and semi flexible insertion tube. It can be easily be operated.

The snake scopes waterproof head and innovative design, as well as its easy accessibility option make it a perfect candidate for Pest controllers, aircraft and marine mechanics, locksmiths, auto-repair, household use, industrial inspection etc.

Specification:

LCD Monitor

• LCD: 2.4 inch TFT
• Build-in flash memory capacity: 2GB
• Power: Built-in Li-ion Battery
• USB port: USB 2.0
• Video compatibility: ASF (MPEG4) /AVI (DIVX, XVID) /3GP/ MP4
• Video Compression: MPEG4
• Signal to noise ratio: 90dB
• Output frequency range: 60Hz-16Hz
• Audio Play: MP3

Super Mini Snake Camera

• TV System: NTSC/ PAL
• Power Input: DC 3.3V-5V
• Power Consumption: (600mW
• Image Device: Super Color VGA Sensor
• Effective pixels: 720 (H) x525 (V) /720 (H) x625 (V)
• Sensor Scan Mode: Progressive Scan
• Frame Rate: 60 Field/ sec / 50 Field/ sec
• S/ N radio: 38dB
• Dynamic Range: 66dB
• Light Source: Build in 4pcs 0402 White LED
• AGC: On
• AEC: 1/60-1/62500s
• Gamma Correction: 0.45
• Video Output: Composite Video signal: 1.0Vp-p, 75 ohms
• Lens View Angle: 60 degree
• Lens F/ NO: F 2.8
• Focal Length: Focus 1: 2cm-7cm
• Lens Construction: 2 plastic + IR cut + Cover Glass
• TV Distortion: (1%
• Water Resistance: IP66
• Operating Temperature: (-10 degree to 60 degree)
• Operating Humidity: 30%-90%Rh
• Tube Length: 2M

Item Includes:

• 1 x 2.4 Inch LCD TFT Portable Digital Video Recorder
• 1 x Wire Snake Bore scope Waterproof Camera
• 1 x 2M cable
• 1 x USB cable
• 1 x Power supply
