Specification:

• Sensor 1/3 DPS Sensor
• Video Format PAL/ NTSC
• Resolution 690 HTVL Effective
• Mini. Illumination 0 lux IR ON
• S/ N Ratio up to 50dB max (Y signal, AGC off)
• Ess Modes 1x to 32 x
• AGC Programmable up to 50dB
• WDR 120 db (max)
• Iris Control Electronic iris/ Auto iris lens (DC drive)
• Extended Slow Shutter 2x / 4x / 8x / 16x / 32x
• Noise Reduction 3D Motion Adaptive
• Digital Zoom 8x
• White Balance ATW, AWB
• Low Light Mode Low speed shutter, AGC, Sense up B/ W Low Speed Shutter .Image
• Day/ Night True Day/ Night, Soft Day/ Night (B/ W)
• Sync Mode Internal/ Line Lock
• Power Voltage 12V DC/ 24V AC
• Power Current (=150mA (IR OFF) ;(=350mA (IR ON) ;
• Video output 1.0Vp-p/ 75 ohm Composite
• Lens 4-9mm Auto Iris Lens
• IR-Range 20Meters
• Operating Temp. -15 degree C to 50 degree C
• Storage Temp. -20degree C to 60 degree C

Features:

• Pixim 1/3-inch Seawolf Solution
• High resolution up to 690 HTVL Effective
• Super wide dynamic range 120dB
• OSD menu
• IR-CUT
• 20 Meters IR Range
• IP-66 Weather-proof standard
• 12V/ 24V Duplicate power design

Item Include:

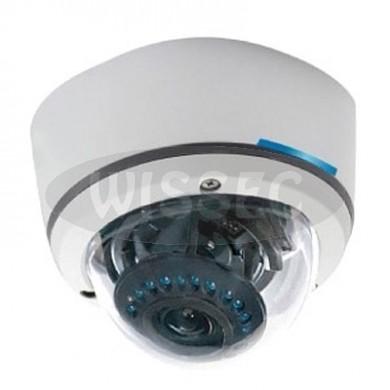

• 1 x 1/3 DPS Sensor 690TVL 8x Zoom Dome Camera OSD Menu
