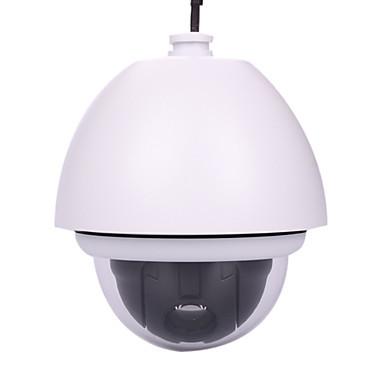

4 Inches Mini High Speed Dome Camera With 1\3'Sony 480TVL(Waterproof Housing, Free Installation Bracket)
4 Inches Mini High Speed Dome Camera With 1\3'Sony 480TVL(Waterproof Housing, Free Installation Bracket)
Item specifics
- Brand Name:
- Brand new
- Model Number:
- WI-MNDC
Product Description
10x HD color zoom camera as module
The indoor monitoring system shares a series of excellence, such as full-angle, non-blind, aesthetic, delicate, compact, high performance and easy installation
The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance
Built-in OSD. Several control protocols are compatible and Baud rate is adjustable
Waterproof Housing, Support Outdoor and Indoor Installation
Presets: 256
Patrol Track: 4groups, each can record 100 actions
Cruise Track: Total 30 presets can join cruise, can setting the presets residence time
Other scan: Support Horizontal scan, deuce area scan, scan random
Rotation range: Horizontal 360.unlimted rotation, Vertical 180.,auto reversal
Rotation speed: Horizontal & Vertical Min 0.01.,Max 300./S
Communications: RS-485, PELCO D, PELCO P
Temperature Control: Built-in
Material: Aluminum shell, Waterproof: IP66
The indoor monitoring system shares a series of excellence, such as full-angle, non-blind, aesthetic, delicate, compact, high performance and easy installation
The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance
Built-in OSD. Several control protocols are compatible and Baud rate is adjustable
Waterproof Housing, Support Outdoor and Indoor Installation
Presets: 256
Patrol Track: 4groups, each can record 100 actions
Cruise Track: Total 30 presets can join cruise, can setting the presets residence time
Other scan: Support Horizontal scan, deuce area scan, scan random
Rotation range: Horizontal 360.unlimted rotation, Vertical 180.,auto reversal
Rotation speed: Horizontal & Vertical Min 0.01.,Max 300./S
Communications: RS-485, PELCO D, PELCO P
Temperature Control: Built-in
Material: Aluminum shell, Waterproof: IP66
Specification
| Image Sensor | |
|---|---|
| Sensor Type | Sony CCD |
| Sensor Size | 1/3 Inch |
| Signal System | PAL, NTSC |
| Horizontal Resolution | 480TVLine |
| Lens (mm) | 3.9-39mm |
| Viewing Angle (Degree) | 360 |
| Minimum Illumination (Lux) | 0 |
| Physical/ Environment | |
|---|---|
| Camera - Power Supply | 12V/ 3A |
| Camera - Operate Temperature (.C ) | -20.C~+50.C |
| Camera - Storage Temperature (.C) | -20.C~+50.C |
| Camera - Operating Humidity (%) RH | (95%RH |
| Camera - Additional Features | |
|---|---|
| Camera Type | Dome Camera |
| Waterproof | Yes |
| Water Resistant | IP66 |
| S/ N Ratio (dB) | ≥60dB |
| Video Output | BNC 1.0Vp-p 75Ω |
| White Balance | Automatic |
| Backlight Compensation | Automatic |
| Automatic Gain Control | On/ Off |
| Electronic Shutter | 1/50~1/12000 sec |
| What's in the box | |
|---|---|
| What's in the box | User Manual - English, 1 Indoor Camera, 1 12V 3A Power Supply |
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 4.000kg
- Package Size:
- 38cm x 32cm x 28cm
