Features:
* 1/3 SONY 810/811 CCD + Enhanced EFFIO-E DSP 700TVL high resolution
* Powerful OSD menu and button control included
* 0.01 LUX / color illumination, 0 LUX IR ON
* 24 IR LED, 20 meters IR distance
* 90# full metal casing, IP66 waterproof level
* 6000V surge protection / thunder proof
* 3.6mm lens (6mm, 8mm is option for free)
* Special waterproof / Anti-cutting bracket included
* 9-18V wide range power input
* Double glass, anti-fog design
Specifications:
Model No. | WSK-E69UI | |
Sensor | 1/3″ Sony 810/811 CCD + Enhanced EFFIO-E DSP | |
Signal | PAL | NTSC |
Pixels | 960 (H) *596 (V) 570K | 968 (H) *496 (V) 480K |
Line | 700TVL | |
Illumination | 0Lux / IR ON | |
Lens | 3.6mm | |
IR LED | 24pcs IR LED | |
IR Distance | 20Meter | |
Vertical | 50Hz | 60Hz |
Horizontal | 15.625KHz | 15.734KHz |
Clock | 28.375MHz | 28.636MHz |
Scanning | 2: 1 Interlace | |
S.N.R | ≥50dB | |
E.S | 1/50-1/100000s | 1/60-1/100000s |
W.B | Auto Tracking | |
B.L.C | ON | |
A.G.C | ON | |
Gamma | 0.45 | |
Video Output | 1Vp-p, 75Ω | |
IP Rating | IP66 | |
Bracket | waterproof Especial Bracket | |
Power | DC/ 9-18V | |
Dimension | 21*13*12cm | |
Volume Weight | 0.5kg |
Package includes:

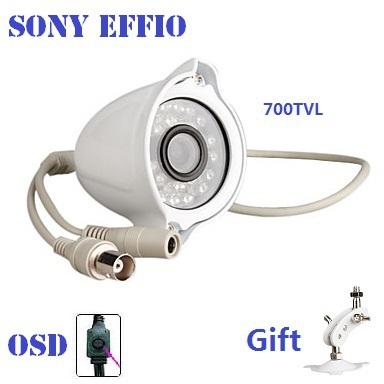

1 x 1/3 Sony CCD Effio 700TVL Waterproof IP66 Camera
1 x OSD button control
1 x Screw
1 x Users manual
Shipping
We are happy to accept orders from Europe, North American, Australasia, and other countries, certain country restrictions may apply.
Parcel will be shipped to you by Registered Airmail that generally takes 12-25 business days (weekend is not included) to deliver on your hands.
Please allow up to 48 hours preparation for shipping, although usually item send within 48 hours after payment confirmed.
We offer shipment combine to buyer whom ordered more than one items once time from same site, to save a part of postage.
We will not be responsible for item loss because of wrong or undeliverable address.
All of parcels will be declaimed as Gift', and we always try the best to Legally Minimize your import duties (or GST or V. A. T. or other Taxes) . In the most cases of shipping, there is none duty payable. However, if any additional charges generated for customs clearance must be borne by customer.
Warranty
1. 12 months Manufacture's Warranty for defective items (excluding items damaged and/ or misused after receipt)
2. Defective items Must BE reported and returned to us within the warranty period (and the original package.) .we will give you a return ID. Meanwhile Please tell us what the defect is, to eliminate improper use.
3. Return shipping fee be responsible from buyer .
Customer service:
We maintain high standards of excellenceand strive for 100% customer satisfaction. Feedback is very important to us. We request that you contact us Immediately BEFORE you give us neutralor negative feedback, so that we can satisfactorily address your concerns.
Thanks for visit our store and welcome next.
