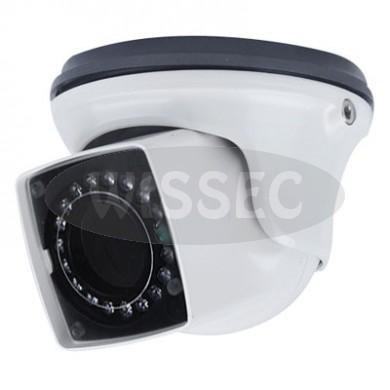

690TVL Vandal Proof Security CCTV Dome Camera 2.8-12mm Auto Iris 20M IR Range

690TVL Vandal Proof Security CCTV Dome Camera 2.8-12mm Auto Iris 20M IR Range

125.99-149.66 USD

add to cart

Quick Overview

Security 1/3inch DPS Sensor 690TVL 2.8-12mm Day/ Night Dome Camera, 690HTVL Effective Resolution, 8x Digital Zoom, 2.8-12mm Auto Iris Lens, 0LUX (IR ON) Mini Illumination, 20 Meters IR Range, Vandal-proof and Weatherproof, IP55 Weatherproof Grade

Details

Features:
  • Vandal-proof and weatherproof IR Dome Camera
  • Pixim 1/3inch seawolf solution
  • Hight resolution up to 690HTVL Effective
  • Super wide dynamic range 120dB
  • OSD menu, IR-CUT
  • 20 Meters IR Range
  • IP55 weatherproof standard
  • DC 12V/ AC 24V Duplicate power design
  • Wall-embedded type installation
Specifications:
  • Sensor: 1/3inch DPS Sensor
  • Video format: PAL/ NTSC
  • Resolution: 690HTVL Effective
  • Mini Illumination: 0LUX (IR ON)
  • S/ N Ratio: up to 50dB max (Y signal, AGC off)
  • Ess Modes: 1x-32x
  • AGC: Programmable up to 50dB
  • WDR: 120db (max)
  • Iris Control: Electronic iris/ Auto iris lens (DC drive)
  • Extended Slow Shutter: 2x/ 4x/ 8x/ 16x/ 32x
  • Noise Reduction: 3D Motion Adaptive
  • Digital Zoom: 8x
  • White balance: ATW, AWB
  • Low light mode: Low speed shutter, AGC, Sense up B/ W Low Speed Shutter Image
  • Day/ Night: True Day/ Night, Soft Day. Night (B/ W)
  • Sync mode: Internal/ Line Lock
  • Voltage: 24V AC/ 12V DC
  • Current: ≤100mA (AC 24V) , ≤150mA (DC 12V)
  • Vido output: 1.0Vp-p/ 75ohm composite
  • Lens: 2.8-12mm Auto Iris Lens
  • IR Range: 20M
  • Weatherproof Standard: IP55
  • Operating Temperature: -15 to +50 degree C
  • Storage Temperature: -20 to +60 degree C
Item Includes:
  • 1*1/3inch 8x 690TVL 2.8-12mm Auto Iris Lens IR Dome Camera
