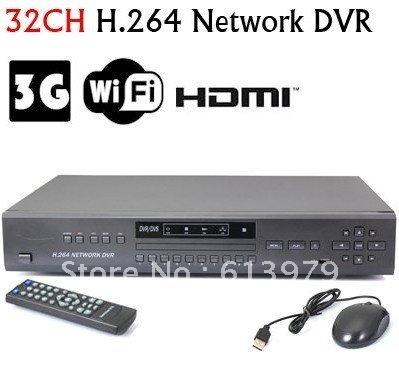

32CH H.264 CIF Realtime CCTV DVR with 8CH Audio HDMI VGA support Iphone android USB 3G WiFi

380 USD

add to cart

Item specifics

Brand Name:: Brand New

Model Number:: WI-16DVR28

Product Description

Main functions:

Realtime surveillance
analog interface and VGA interface (VGA interface is equipped selectively)
surveillance function through monitor or display
Storage
nonworking hard disk dormancy processing which is convenient to radiate heat, reduce power and
extend the lifespan (The Item Doesn't Contain Hard Disk)
special storage format which insures the data safety
Compression
realtime compression by individual hard disk which insures the audio and video signal stable
synchronization
Backup
through SATA interface and USB interface such as USB equipment, removable hard disk and so on
through net download the files in the hard disk
Playback
individual realtime video recording as well as searching, playback, network surveillance, recording
check, downloading and so on
8CH playback mode
zoom at arbitrary region
Net operating
through net telesurveillance in the real time
tele-PTZ control
tele-recording check and realtime playback
Alarm linkage
multiroute relay alarm output which is convenient for the alarm linkage and light control at the spot
protecting circuits at the alarm input and output interface which protects the main machine from damage
Communication interface
RS485 interface which fulfills the alarm input and PTZ control
standard ethernet network interface which fulfills the telecommuting function
Intelligent operating
mouse action function
fast copy and paste operating for the same setting
Language:
Arabic, Czech, English, Finnish, Greek, Indonesian, Italian, Japanese, Portuguese, Russian, Thai, T-Chinese, S-Chinese, Turkish, Brazilian, Bulgarian, Farsi, French, German, Hebrew, Hungarian, Polish, Romanian, Spanish, Swedish, Vietnamese
Mobile monitor:
support Iphone android BlackBerry Symbian

Specification:

System	Main processor	High performance embedded microprocessor
	Operation system	Embedded LINUX operation system
	System resource	synchronous multi-channel recording, synchronous multi-channel sub-code stream, synchronous multi-channel playback, synchronous network operation
Interface	Operation interface	16 bit true color graphical menu interface, mouse operation supportive
Interface	display	PAL. (704x576) ; NTSC. (704x480)
Video	Video standard	PAL 625line, 50 f/ s; NTSC 525 line, 60 f/ s
	Surveillance image quality	PAL. (704x576) ; NTSC. (704x480)
	Playback image quality	PAL, CIF ( (352 x 288) ; NTSC, CIF (360 x 240)
	Video compression	H. 264 mp
	Video control	6 options
	Recording speed	800/960fps (CIF)
	Motion detect	396 (2218) detection areas, multiple sensitivity
Audio	Audio compression	G711A
Audio	Bidrectional Talk	Support
Record And Playback	Recording mode	manual ) alarm) motion detect) timing
	Playback	16 channels playback
	Search mode	Time searching, calendar searching, affair searching, channel searching, information searching
Storage And backup	Space Occupation	Audio: 28.8MB/ H Video: 25450MB/ H
	Recording storage	Hard disk, network (The Item Doesn't Contain Hard Disk)
	Backup mode	Network, USB flash, USB movable HDD, USB DVD-RW
Port	Video input	32BNC
	Video output	2BNC, 1 VGA
	Audio input	8RCA
	Audio output	1 RCA
	Alarm input	8ch
	Alarm output	1channel
	Network port	RJ45 10M/ 100M
	PTZ control port	1 RS485
	USB port	2* USB 2.0 ports
	Hard disk port	2 SATA port MAX 2TB * 2
Other	Power supply	12V/ 4A external power supply
	Power consumption	(15W (without hard disk)
	Working temperature	0~+55
	Working humidity	10%-90%
	Air pressure	86kpa106kpa
	Installation	Desktop

Item Include:

1 x 32CH H. 264 standalone DVR with USB, VGA, HDMI & 2 SATA interface
1 x Power supply
1 x Remote control
1 x Mouse
(The Item Doesn't Contain Hard Disk)

Packaging Details

Unit Type:: piece

Package Weight:: 3.500kg (7.72lb.)

Package Size:: 43cm x 30cm x 10cm (16.93in x 11.81in x 3.94in)
