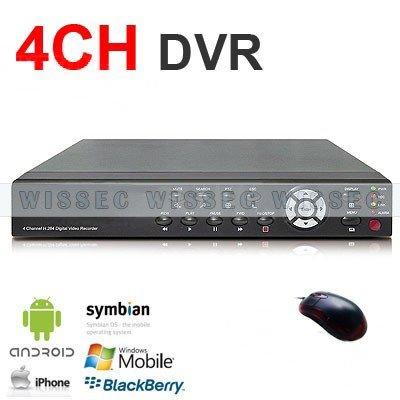

4CH Video&Audio H.264 CCTV Network DVR Mobile Phone IE View w\VGA

4CH Video&Audio H.264 CCTV Network DVR Mobile Phone IE View w\VGA

126.49 USD

add to cart

Item specifics

Place of Origin:
Guangdong China (Mainland)
Model Number:
WI4DVR19

Product Description

  • Standard H. 264 video compression format
  • 16-bit true-color semi-transparent graphical menu interface, menu options tip
  • A variety of recording modes: manual, timing, motion and alarm recording
  • Optimized 4-ch simultaneous playback (single playback for 8-ch ones)
  • A variety of backup (USB disk, mobile hard disk, network)
  • One USB2.0 for data backup, one USB1.1 for the Multi-functional operation, recording, playback, monitor, backup and network transmission can be realized at the same time
  • Dual stream technology
  • Support network to implement multi-screen real-time browsing, parameter setting, copy or playback
  • Support mobile phone monitoring
  • Support event classification and precise time search and playback
  • Defaulted parameter value fast recovery
  • Flexible USB interface for mouse

Specifications:

Operating system Embedded LINUX OS
Video compression H. 264
Video/ Audio input 4 channels BNC
Video/ Audio output 1 channel BNC
Display spilt 1/4-channel
VGA output Support 600x800 1024x768 1280x1024 @60Hz
Multiplex operation Live, recording, network, , mobile phone surveillance simultaneously
Recording mode Timer/ manual/ motion detection/ alarm
Recording frame rate PAL: 100fps NTSC: 120fps adjustable
Recording quality Hight, normal , low
Recording resolution CIF/ Half-D1/ D1
Recording playback 4 channel playback simultaneously
Recording backup Support USB flash disk, mobile hard disk, network backup
HDD Support 1 SATA HDD, capacity to 2T
Network transmission 4 channels real-time network transmission with CIF resolution
Capture function Support
Email alarm Send pictures to the designated Email box
PTZ control Support
PTZ protocol PELCO-D, PELCO-P
PIP Support
Zoom Support
Network and protocol 1 RJ-45 10/100M via Ethernet, support TCP/ IP, SMTP, DHCP, DNS, DDNS, NTP etc.
IE browser Support, max five users online
Client software Support, max five users online
CMS Support
Dual stream Support (main and secondary interchange)
Multi-language Support
Mobile phone surveillance Support Windows, Symbian, IPhone, Blackberry, Android
Mouse interface USB1.1
Backup interface USB2.0
Remote controller Support
User authority Support multi-level user authority distribution
Power DC12V/ 3A
Working temperature -20 degree C to 60 degree C
Working humidity 10% to 90%

Item Includes:

  • 1 x INS-4DVR19 Security Surveillance 4CH H. 264 Real Time Network DVR
  • 1 x Power Adapter for DVR
  • 1 x Remote Control for DVR
  • 1 x Mouse for DVR

Packaging Details

Unit Type:
piece
Package Weight:
2.000kg (4.41lb.)
Package Size:
33cm x 28cm x 13cm (12.99in x 11.02in x 5.12in)
