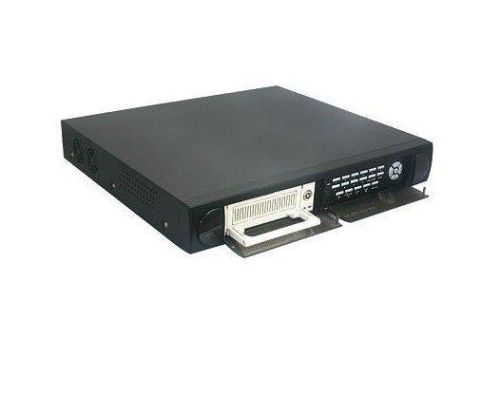

Security CCTV H.264 16CH Digital Video Record CCTV Camera DVR System Support Dual Stream Network Transmission

Security CCTV H.264 16CH Digital Video Record CCTV Camera DVR System Support Dual Stream Network Transmission

380 USD

add to cart

Item specifics

Place of Origin:
Guangdong China (Mainland)
Model Number:
WI-D9216

Product Description

WI-D9216 is generated with Linux operation system which provides higher reliability stability. The graphic windows style OSD interface will help you to operate the DVR easier. The H. 264 hardware compression generates high resolution picture fluent network transmission, and allows to record greater duration with smaller HDD space. The powerful network function can transfer the video audio synchronously, and allows 5 accesses via network at the same time. You will be able to monitor your properties at anytime anywhere with the mobile phone monitoring function. Doesn't support DVD-RW.

Specification:
Model: WI-D9216
Compression: H. 264
System: NTSC / PAL
Monitoring Resolution: PAL: D1 (704x576) / NTSC: D1 (704x480)
Playback Resolution: PAL: CIF (352x288) / NTSC: CIF (352x240)
Display Frame Rate: PAL: 400fps / NTSC: 480fps
Recording Frame Rate: PAL: 400fps@CIF / NTSC: 480fps@CIF
Audio Compression: 8kHz x 16bit ADPCM
Audio Input / Output: BNC 4 Channel Inputs / 2 Channel Outputs
Intercom Input: BNC 1 Channel
Recording Mode: Always / Schedule / Motion Detection / Sensor Triggered
Display Mode: Single / Quad / Nine / Hex / PIP / S.E.Q.
Recording Pack Time: 15/30/45/60mins Selectable
HDD Port: Support Up to 2 Sets of SATA HDD
Network Interface: RJ45, 10M/ 100M
Network Protocol: Support TCP/ IP, UDP, DHCP, DNNS, PPPoE
Network Function: IE Viewer / Live Monitoring / DVR Setting / Mobile Phone Email Function
Mobile Phone Function: Support Symbian S60 3rd Edition System / Windows Mobile
USB2.0: 1 USB Mouse, 1 USB Backup Device
Playback: Local: Max. 4 Channel At the Same Time
Network: 1 Channel At The Same Time
PTZ: Built-in RS-485 Port, Support PELCO-P PELCO-D
Backup: USB Flash Disk, Removable HDD, Network
Alarm Method: Motion Detection, Sensor Triggered, Video Loss, HDD Error, HDD Full
Senor Alarm I/ O: 16 Sensor Inputs / 1 Alarm Output
Remote control mouse: Included
Power Supply: DC 12V/ 5A (Power Adaptor Included)
Working Temperature: 10 degree C to 40 degree C
Working Humidity: 10% to 90%
Playback Mode: Normal Play, Fast Forward, Fast Rewind, Manual





Features:

  • H. 264 real-time high compression, support dual stream network transmission.
  • Stand-alone Linux2.6 operation system.
  • Graphics Windows OSD interface.
  • Support CIF recording resolution
  • ADPCM audio compression.
  • Support triplex operation: record, playback, net transmission.
  • Triplex control methods: USB mouse, remote controller keypad on front panel.
  • Support remote view with Mobile Phone (Symbian S60 3rd system Windows mobile system) .
  • Support to backup upgrade with USB flash disk.
  • Support up to 2 x 1TB SATA HDD.
  • Support to real-time remote view with IE (Internet Explorer) .
  • Support to transmit audio via network.
  • Support PTZ control via built-in RS-485 port.
  • Selectable packing time for recording files.
  • System Auto Recovery After Power Reconnected.
  • Remote Alarm Notification via Email Images.
  • Support motion detection sensor triggered recording.
  • Video loss alarm function.
  • Point to point intercom.
  • Optional VGA output.

Item Includes:

  • 1 x 16-Channel H. 264 Triplex Digital Video Recorder
  • 1 x Power Cord
  • 1 x Power Adapter
  • 1 x User Manual
  • 1 x USB Mouse
  • 1 x Remote Controller
  • 1 x Software CD

Packaging Details

Unit Type:
piece
Package Weight:
3.500kg (7.72lb.)
Package Size:
31cm x 31cm x 20cm (12.20in x 12.20in x 7.87in)
