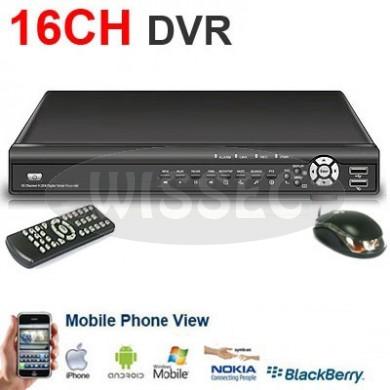

16CH H.264 Surveillance DVR System Security CCTV Net 3G
Quick Overview
16 Channel Standard H. 264 video compression format Digital Video Recorder, PAL: 400fps / NTSC: 480fps Recording frame rate, Support PTZ control, Support up to 2T SATA HDD, Support Mobile phone surveillance
Details
| Specification: | |
| Model | WI-16DVR07 |
| Operating system | Embedded LINUX |
| Video compression | H. 264 |
| Video input/ output | 16CH Input / 1x BNC , 1x VGA ouput (1280 x 1024) |
| Audio input/ output | 2x BNC input/ 1 channel BNC output |
| Alarm Input/ output | 8CH Alarm Input/ 1CH Alarm Output |
| Alarm Method | Email Alarm, Motion Detection Alarm |
| Display split | 1/4 channels on network, 1/4/9/16 channels directly connected to monitor, 4ch synchronous playback |
| Multiplex operation | Live, recording, network, mobile phone surveillance simultaneously |
| Recording mode | Timer/ manual/ motion detection/ alarm |
| Recording frame rate | PAL: 400fps , NTSC: 480fps adjustable |
| Recording quality | Best, Fine, Normal |
| Recording resolution | CIF (352 x 288) |
| Recording playback | 4 channels playback simultaneously (the playback channel is optional . Support remote playback ) |
| Recording backup | Support USB disk backup, mobile hard disk backup, network backup, backup by files, backup by time |
| HDD | Support up to 1x 2000GB SATA HDD |
| Network transmission | 4 channels with CIF resolution |
| Email alarm | Send pictures to the designated Email |
| PTZ control | Support |
| PTZ protocol | PELCO-D, PELCO-P |
| PIP | Support |
| Zoom | Support |
| Network and protocol | 1x RJ-45 10/100M via Ethernet, support TCP/ IP, DHCP, DNS, DDNS, SMTP, NTP etc. |
| Capture function | Support |
| IE browser | Support, max 5 users on line |
| Client software | Support, max 5 users on line |
| Dual stream | Support (main and secondary interchange) |
| Multi-language | Support |
| Mobile phone surveillance | Support Windows, Symbian, IPhone, Blackberry, Android, max 3 users on line |
| SDK package | Optional |
| Mouse interface | USB1.1 |
| Backup interface | USB2.0 |
| Remote controller | Support |
| User authority | Support multi-level user authority distribution |
| Power adapter | DC12V/ 5A or 12V/ 3A (one HDD) |
| Working temperature | -20 Degree C - 60 Degree C |
| Working humidity | 10%-90% |
| SIZE (mm) | 354 (W) * 230 (D) * 45 (H) |
| Item Include: | |
| 1 x 16CH H. 264 Network Digital Video Recorder | |
Features:
- Standard H. 264 video compression format
- 16-bit true-color semi-transparent graphical menu interface, menu options tip
- A variety of recording modes: manual, timing, movement and alarm recording
- Optimized four-channel simultaneous playback
- A variety of backup (USB flash disk, mobile hard disk, network)
- One USB2.0 for data backup, one USB1.1 for the mouse operation
- Multi-functional operation, recording, playback, monitor, backup and network transmission can be realized at the same time
- Dual stream technology
- Support network to implement multi-screen real-time browsing, parameter setting, copy or playback
- Support mobile phone monitoring
- Support event classification and precise time search and playback
- Defaulted parameter value fast recovery
- Flexible USB interface for mouse
