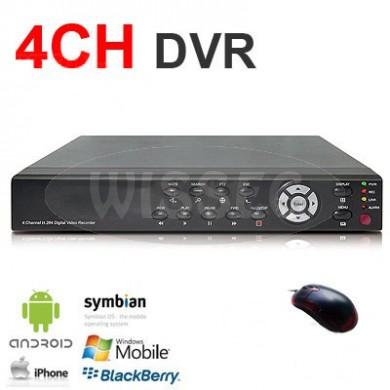

4CH Video&Audio H.264 CCTV Network DVR Mobile Phone IE View w\VGA
Quick Overview
4CH H. 264 Real Time Network Security CCTV DVR Digital Video Recorder, Support 2TB HDD, Recording frame rate PAL: 100fps NTSC: 120fps adjustable, RJ45 PTZ Control, Network Backup, Support USB2.0 Interface, Video CCTV Surveillance Digital Video Recorder DVR Systems.
Details
Features:
- Standard H. 264 video compression format
- 16-bit true-color semi-transparent graphical menu interface, menu options tip
- A variety of recording modes: manual, timing, motion and alarm recording
- Optimized 4-ch simultaneous playback (single playback for 8-ch ones)
- A variety of backup (USB disk, mobile hard disk, network)
- One USB2.0 for data backup, one USB1.1 for the Multi-functional operation, recording, playback, monitor, backup and network transmission can be realized at the same time
- Dual stream technology
- Support network to implement multi-screen real-time browsing, parameter setting, copy or playback
- Support mobile phone monitoring
- Support event classification and precise time search and playback
- Defaulted parameter value fast recovery
- Flexible USB interface for mouse
Specifications:
| Operating system | Embedded LINUX OS |
| Video compression | H. 264 |
| Video/ Audio input | 4 channels BNC |
| Video/ Audio output | 1 channel BNC |
| Display spilt | 1/4-channel |
| VGA output | Support 600x800 1024x768 1280x1024 @60Hz |
| Multiplex operation | Live, recording, network, , mobile phone surveillance simultaneously |
| Recording mode | Timer/ manual/ motion detection/ alarm |
| Recording frame rate | PAL: 100fps NTSC: 120fps adjustable |
| Recording quality | Hight, normal , low |
| Recording resolution | CIF/ Half-D1/ D1 |
| Recording playback | 4 channel playback simultaneously |
| Recording backup | Support USB flash disk, mobile hard disk, network backup |
| HDD | Support 1 SATA HDD, capacity to 2T |
| Network transmission | 4 channels real-time network transmission with CIF resolution |
| Capture function | Support |
| Email alarm | Send pictures to the designated Email box |
| PTZ control | Support |
| PTZ protocol | PELCO-D, PELCO-P |
| PIP | Support |
| Zoom | Support |
| Network and protocol | 1 RJ-45 10/100M via Ethernet, support TCP/ IP, SMTP, DHCP, DNS, DDNS, NTP etc. |
| IE browser | Support, max five users online |
| Client software | Support, max five users online |
| CMS | Support |
| Dual stream | Support (main and secondary interchange) |
| Multi-language | Support |
| Mobile phone surveillance | Support Windows, Symbian, IPhone, Blackberry, Android |
| Mouse interface | USB1.1 |
| Backup interface | USB2.0 |
| Remote controller | Support |
| User authority | Support multi-level user authority distribution |
| Power | DC12V/ 3A |
| Working temperature | -20 degree C to 60 degree C |
| Working humidity | 10% to 90% |
Item Includes:
- 1 x INS-4DVR19 Security Surveillance 4CH H. 264 Real Time Network DVR
- 1 x Power Adapter for DVR
- 1 x Remote Control for DVR
- 1 x Mouse for DVR
