This device is a video coding and recording product specially designed for the video monitoring field, combining with H. 264 video compression, large capacity HDD storage, TCP/ IP network, embedded Linux operating system and other various advanced electronic information technologies, realizing high-quality image and low bit rate recording features and favourable system stability.
The device meets the standard of GB 20815-2006 Video Security Surveillance Digital Video Device issued by the government. This device has multiple functions including recording, playback and monitoring simultaneously, realizing synchronous video and audio, with advanced control technology and powerful network data transmission ability.
The series DVR can be used individually or online applied as a part of a safety surveillance network. With the professional network video surveillance software it achieves the strong network communication ability and telecommunication ability.
The series DVR can be applied in the bank, telecom, electric power system, judicial system, transportation, intelligent housing, factory, storehouse, water conservancy and so on.
Features:
Full Functions: HDMI.
Novel Appearance: adopt brand new design idea and fashionable blue color as the main color.
Recording Resolution: 4ch: 4ch full D1 (100 fps) .
Novel Playback Mode: skip decode, average decode, full decode.
Backup Way: support U disk, USB mobile HDD, USB, network
With built-in DDNS server which realizes network monitoring easily.
Support preview and playback image zooming function.
Mobile Surveillance: support all kinds of 3G mobile phone surveillance.
Language: support 26 kinds of languages.
Adopts electric circuit protection design which effectively avoid breakdown by static electricity and lightning. The unique triple Watchdog Timer function ensures the stability of the DVR.
Specification:
Operating System | LINUX operating system |
Image Code Control | H. 264 |
Dual Stream | Every channel can set |
Video Standard | PAL/ NTSC |
Monitoring Image Quality | D1 (704x576) |
Image Dynamic Detection | Each screen can detect 64 (8x8) detection areas and set 6-level sensitivity |
Playback Image Quality | PAL: 4ch D1 (704x576) 100 fps; NTSC: 4ch D1 (720x480) 120 fps |
Region Cover | Every channel can set 4 cover regions |
Record Mode | Support manual, auto, dynamic detection, alarm trigger |
Recording Playback | Support 1ch to 4ch playback Simultaneously |
Video Bit Rate | 48Kbps-2048Kbps, support user-defined, MAX 2048Kbps |
Bit Stream Type | Composite stream/ video stream |
Audio Compression Standard | G. 711A |
Audio Bit Rate | 64kbps |
Backup Way | Support HDD, U disk, USB mobile HDD, USB burner, network storage and backup |
Operation Way | Mouse, remote control, front panel button, keyboard controller |
Local Login | User name and password |
Recording Storage | Local HDD, network |
Video Input | 4ch BNC |
Audio Input | 4ch RCA |
Voice Talkback | Input 1 RCA port, the same channel as the first channel of the audio input |
Video Output | 2ch BNC, 1ch VGA (Resolution: 800x600, 1024x7681280x1024) , 1ch HDMI |
Audio Output | 1ch RCA |
Network Port | 1 RJ45, 10M/ 100M self-adaptive LAN port |
RS485 Port | Full duplex standard 485 port, support 19 kinds PTZ protocol |
USB Port | 2 USB 2.0 ports (one is on the front panel, the other one is on the rear panel) |
Alarm Input | 4ch |
Alarm Output | 1ch |
HDMI Port | 1 standard HDMI port |
Wireless Port | 3G, WIFI Via USB (3G WiFi Module Not Include) |
HDD Port | 2 SATA HDD ports |
Max Capacity | Every port MAX supports 2TB HDD |
Mobile Surveillance | Support ( iPhone, Windows Mobile, BlackBerry, Symbian, Android) 3G mobile phones |
Power Supply | 12V 2.6A |
Consumption | (=20W (without HDD) |
Operation Temperature | -10 degree C to +55 degree C |
Operation Humidity | 10% to 90% |
Dimension Equipment | 315mmx225mmx52 mm, Packing: 409mmx365mmx129mm |
Weight (without HDD) | N.W. 1.45Kg, with packing 2.76Kg |
Item Include:

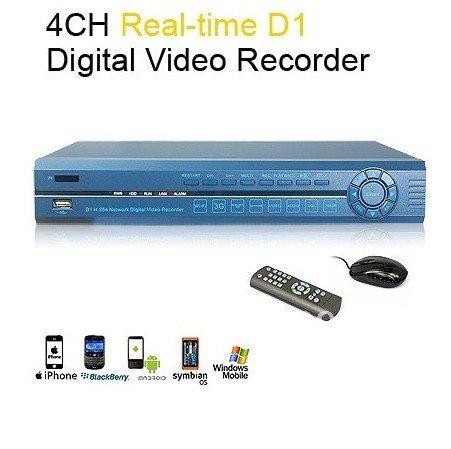

1 x 4CH H. 264 Real Time D1 Security CCTV DVR
1 x Power Adapter for DVR
1 x Remote Control for DVR
1 x Mouse for DVR
1 x SATA Cable for DVR
1 x Installation Package
