Specification:

• Compression Format: H. 264

• Video System: NTSC/ PAL

• Video Input: Composite 1.0vp-p/ 75ohm, BNC*8

• Monitor Output: 1.0vp-p Composite 75ohm, BNCx1 monitor

• VGA Output: Analogue RGB 60 Hz, 800x6001024x768, 1280x1024

• Resolution: NTSC (720x480) , PAL (720x576)

• Audio Input: -8db22kohm, RCA connector x 8

• Audio Output: -8db3kohm, RCA connector x 1

• Alarm Input: 8

• Alarm output: 1

• Frame and Resolution:
  -CIF: NTSC 240fps/ 352x240, PAL 200fps/ 352x288
  -1/2D1: NTSC 120fps/ 720x240, PAL 100fps/ 720x288
  -D1: NTSC 60fps/ 720x480, PAL 50fps/ 720x576

• HDD Port: MAX Support 2 x 1TB SATA HDD

• Network Port: 10M/ 100M/ 1000M Ethernet port

• Mobile monitoring: Windows mobile, Symbian, iphone

• Email for alarm: Support SMTP server

• Confidential Function: Password Protection

• Power Supply: DC 12V/ 3A

• Power Consumption (No HDD) : 9W

• Environment:
  -Operating Temperature: 0 to +55 degree C
  -Humidity: 10~90%

Features:

• Non-pc stand-alone security digital video recorder with embedded operation system

• H. 264 compression format

• Mobile monitoring

• Chinese/ English languages supported

• Audio and video recording and play back at the same time

• Support NTSC/ PAL video system

• 8CH video input, 1CH monitor output, 1CH VGA output

• 8CH audio inputs, 1CH audio output

• High quality image, brightness contrast, sharpness and color adjustable for each channel

• Support auto sequence display

• Display modes: PIP, FULL, QUAD, 9 SPLIT

• Recording modes: always recording, manual recodig, schedule recording, sensor recording and montion recording

• Image quality and bitrate: highest, high, standard, low

• Detailed event log support

• Searching modes: time/ date searching, event searching, urgent searching

• Support fast forward and rewind: x2, x4, x6

• Backup modes: network backup, USB backup, Support RS-485PTZ control (speed dome camera) , and preset positions operation

• Support USB mouse and infrared remote controller operation

• Support 2 SATA port HDD

• 8CH alarm inputs, 1CH alarm output

• Upgrade mode: USB upgrade, network upgrade

• Support TCD/ IP and DHCP

• IE browser monitoring

• Network viewer tool for monitoring, playback, setup, upgrade and log viewing

• Support email and DDNS

• Multiplex operation: live/ recording/ playback/ network can be operared at the same time

• Telemetry network control: live view, playback, recording and so on

• Frame rate in the live display mode: 240fps (NTSC) , 200fps (PAL)

• Frame rate in the playback mode:
  -CIF: 240fps (NTSC) , 200fps (PAL)
  -1/2D1: 120fps (NTSC) , 100fps (PAL)
  -D1: 60fps (NTSC) , 50fps (PAL)

Item Includes:

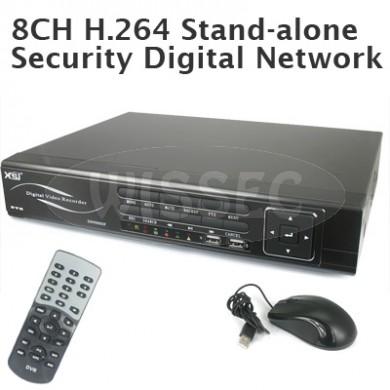

• 1 x 8CH Standalone DVR

• 1 x Remote Control

• 1 x Power Adapter

• 1 x Mouse
