The ring will only available when use outdoor unit to call indoor unit.

Specification:

• Power: No Power Need
• Camera: CMOS 300000pixels
• Lamp-house: 6 LED lamp
• Power Consumption: Standby 0.1W Open lock 12W
• Available Distance: 80m (4 x 0.65 MM2)
• Visual Angle: 62 degree
• Working Temperature: -10 degree C to + 50 degree C

Monitor

• Power: input: AC 100-240V 50/60Hz output: DC 15V/ 1.2A
• Displayer: 7 inch 480 x 234
• Available Area: 154.08 x 86.58
• Power Consumption: Standby 0.5W Working 8W
• Keep Talking: 120s +/ - 10%
• Keep Monitoring: 60s +/ - 10%
• Working Temperature: -10 degree C to + 50 degree C

Features:

• The products obvious luxury style and leads the tideway of color visual intercom bell with thin designed for aluminum-alloy panel of indoor unit.
• Waterproof, anti-oxygenation and long grinded treatment for aluminum-alloy panel of outdoor unit.
• No radiation, low power consume and 7 inch TFT high definition color picture.
• With functions as monitor, call, door-key, non-lift answer, no disturber, indoor call and pictures storage.
• Adjustable for ring volume, picture brightness, chrome and call.
• Accompany with power switcher and terminal unit, user can install by own.

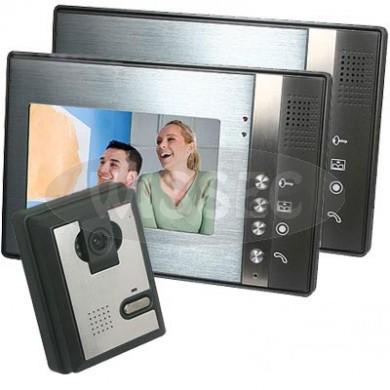

Item Includes:

• 2 x Indoor unit
• 1 x Outdoor unit
• 2 x 12V/ 1.2A power supply
• 1 x Users manual
