Specification:

Waterproof Rear View Camera

• Image Type: 1/3 inch SHARP Color CCD
• Horizontal Resolution: 420TV Lines
• Effective pixel: NTSC: 510 (H) X492 (V) ;PAL: 500 (H) X582 (V)
• Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)
• Free viewing angle: 130 degree
• Backup Camera Waterproof: IP68
• Shockproof: 10G
• Video Output: 1.0Vp-p75 ohm
• Power supply: DC12V from Reversing Monitor
• Dimensions: 45 (W) x 42 (H) x 55 (D) mm (without mounting)
• Weight: 186g

5 Inches Digital Screen Rear View Monitor

• 5 inch Digital Screen Color Rear View Monitor
• Color System: PAL/ NTSC (AUTO)
• Display Resolution: 640 (H) X 3RGB X 480 (V) dot
• OSD MENU Separately Set Each Camera Trigger Priority
• OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30'
• OSD MENU Separately Set Each Camera Mirror/ Normal image
• Manual and Automatic Switch Display Mode
• Support Two Camera Video Inputs: 1.0Vp-p75ohm
• Wide view angle (CR) 10) : (up/ down) : 45/65 (left/ right) : 65/65
• Brightness (cd/ m2) : 300
• Contrast ratio: 500: 1
• Back-light : Single LED
• Operating temperature: -20 degree C to +70 degree C
• Storage temperature: -30 degree C to +80 degree C
• Power supply: DC11~32V
• External dimensions: L x W x T (150X118X23) mm (without mounting)
• Weight Approx: 279g

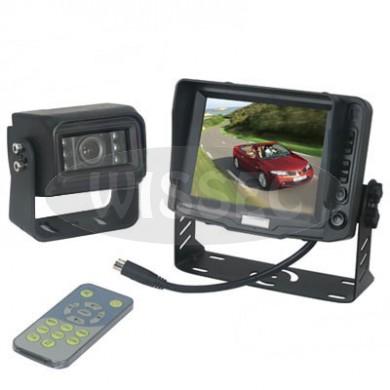

Item Includes:

• 1 x 1/3 inch SHARP Color CCD Waterproof Rear View Camera
• 1 x 5 Inches Digital Screen Rear View Monitor
• 1 x Monitor bracket
• 1 x 15m cable, Electrical connecting cable
• 1 x User Manual
• 1 x Full Function Remote Controller
