Specifications

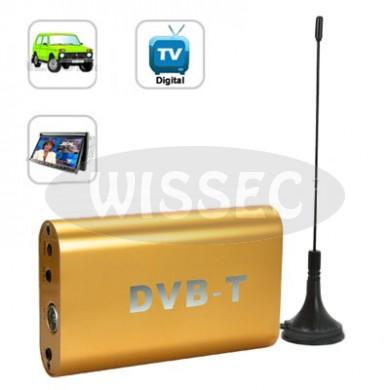

• Primary Function: DVB-T digital TV receiver
• Specifications:
• Receiving frequency: VHF-H (174MHz~230MHz) , UHF (470MHz~862MHz)
• Bandwidth: 8MHz
• Input level: -78dBm ~ -20dBm
• Input resistance: 75Ω



• Demodulator:
  - Wave: CODFM
  - Demodulation: QPSK, QAM16. QAM64
  - Mode: 2K, 8K
  - Protection gap: 1/4, 1/8, 1/16, 1/32
  - Code rate: 1/2, 2/3, 2/4, 5/6, 7/8



• Video Decoding:
  - Standard: ISO/ IEC 13818-2 MPEG-2 MP@ML
  - Video format: 4: 3, 16: 9
  - Resolution: max. 720*576
• Demultiplexer:
  - Standard: ISP/ IEC 13818-1
  - Max. input code current: 60Mbps (serial connection) / 7.5MBps (parallel connection)



• Audio Decoding:
  - Standard: ISO/ IEC 13818-3
  - Channel mode: left, right and stereo
  - Sampling frequency: 32KHz, 44.1KHz, 48KHz



• Microprocessor: SUNPLUS SPHE1002
• Video Output:
  - Output system: 720 x 480 (NTSC) / 720 x 576 (PAL)
  - Output level: 1.0Vpp
  - Output resistance: 75Ω



• Audio player format: MP3
• Speed Rating: 150 km/ hr
• Antenna impedance: 50 ohm
• Working Temperature: -20 C to 70 C
• Humidity: 80%
• Media storage: USB flash drive (up to 16 GB)
• OSD Languages: English
• Application: France, Germany, Vietnam, Taiwan, Belgium

Notes:

• This DVB-T product receives MPEG-2 encoded signals. Please check whether your region's Digital TV broadcasts are MPEG-2 type or MPEG-4 before purchasing this product.
• This digital TV box is for in-car use
• Easy to setup
• Also comes with a USB slot to play AVI and MP3 files from USB flash drives
• Great addition for older or basic car DVD players

Item include:

• 1 x DVB-T digital TV box
• 1 x Magnetic antenna (3 meters long)
• 1 x Power cable
• 1 x AV cable
• 1 x User Manual - English
