The company operating the FT-106 ordinary abrasive bulk density tester, Pu village, quality assurance, welcome to consult the discussion.

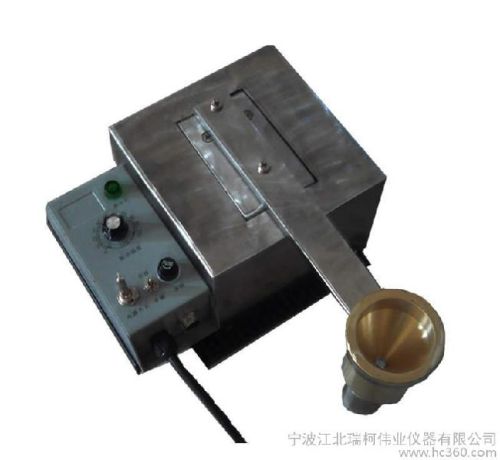

FT-106 Ordinary abrasive The bulk density meter, Abrasive Bulk density meter

FT-106 Ordinary abrasive The bulk density tester (original DMP-II )

FT-106 Ordinary abrasive The bulk density tester According to international standard ISO9136: 1989 (Determination of bulk density coarse grains) and industry standard JB / T7984.2-1999 (Ordinary coarse grit abrasive Determination of bulk density) of the relevant technical requirements of development and production of special detection equipment, while meeting the GB / T20316.1-2009 bulk density tester requirements; suitable for detecting manufacturing bonded abrasives and coated abrasives bulk density of coarse particles of abrasive materials, but also for the detection of other granular material bulk density of the detection method. results and international common detection method has complete versatility.

FT-106 Ordinary abrasive The bulk density tester working principle

The abrasive test load funnel, open the drain valve, abrasive natural port along the funnel and into the measuring cylinder fall, and will fall into the measuring cylinder abrasive Calibrating the balance Weigh Calibrating the measuring cylinder abrasive quality, and then divided by the volume measuring cylinder, can be measured bulk density of abrasive measured.

FT-106 Ordinary abrasive The bulk density tester Technical Parameters

The main technical parameters

1.1 Funnel Material: Stainless Steel;

1.2 funnel Dimensions: Height 240mm; top diameter 160mm; outlet diameter: (20 ± 0.5) mm;

Catchy from the bottom of the funnel and measuring cylinder: (76 ± 1) mm measuring tube size: diameter 64mm; net height 62mm measuring cylinder volume: (200 ± 0.5) cm3 measurement error: ≤ ± 0.02g / cm3.
2.1 Measurement error: ≤ ± 0.02g / cm3.
2.2 measuring cylinder volume: 200 ± 0.5cm3.
2.3 Dimensions: 230mm (length) * 250mm (width) * 425mm (H)

FT-106 Ordinary abrasive The bulk density tester

Note: Specific parameters, please keep in touch with us, as well as related products.
