Powder density tester, tap density gauge powder, metal powder tap density

bargain

Types of: other

Detailed description:

Custom processing:	Measuring range: 1
Type: Desktop density meter	Division value: 1
Accuracy: 1	Use: Powder density tester, tap density gauge powder, metal powder tap density
Variety: vibrating	Power: 1 (V / HZ)
Display: 1	Custom processing:
Measuring range:	Types of:
Dividing the value of:	Accuracy:
use:	Variety:
power supply:	display method:

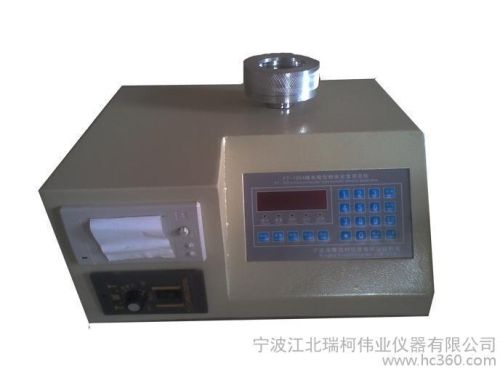

FT-100A Microcomputer Powder Density Tester, USP tap density meter

FT-100A Powder Density Tester Is consistent with USP (United States Pharmacopoeia), BP (British Pharmacopoeia) and EP (European Pharmacopoeia) Specification requirements and GB / T 5162-2006 / ISO3953: 1993 (metal powder tap density measurement), the instrument covers the national standard GB / T 5162-2006 / ISO3953: 1993 in the indicators ..

FT-100A Powder Density Tester By a variable speed motor, vibration components, micro and mini printers and other components. And the instrument with a compact, solid, simple operation, suitable for non-metallic powder, metal powder, pharmaceuticals, chemicals, batteries, abrasives as well as research and teaching and other fields, is the ideal instrument for powder industry tap density test. The basic working process of tap density tester is the powder cylinder fixed to the mechanical vibration device, vibration motor driven mechanical vibration device up and down vibration, graduated tube containing powder With the mechanical vibration device rhythmic vibration occurs, the vibration frequency increases, the cylinder where the powder gradually after the tap, vibration frequency reaches the set number of times, mechanical vibration device to stop the vibration, volume readout graduated tube, according to the density Definition: mass divided by volume, thereby obtaining powder tap density after.

FT-100A Powder Density Tester Technical Specifications:

Sample weight: ≤500.00 g;
Sample volume: ≤250.00 milliliter;
Single frequency vibration: 0 ~ 99999 Views (when set to 0 Times when the result is output as 'bulk density') ;
Allow the motor torque: 0.86 N.m;
Vibration frequency: 0 to 300 rev / min (adjustable);
Vibration amplitude: maximum 14mm, 1-14mm adjustable integer;
Repeatability error: ≤1%;
Accuracy error: ≤1%;
Input Power: AC 220V (50Hz / 60Hz), 40W.
Installation and use

Cylinder selection

FT-100A Microcomputer Powder Density Tester equipped 25ml , 50 ml , 100 ml , 250 ml Four different specifications of the cylinder (see annex). In order to improve the accuracy of testing, please be measured based on the weight of powder ( m ) And bulk density (ρ) Select the appropriate cylinder.

Cylinder volume ( cm³ )	Powder Weight (g)	Bulk density ( g / cm³ )
25	m ≤ 10.0	ρ≤ 0.8
	10.0≤ m ≤20.0	0.8 ≤ρ≤2.0
	20.0≤ m ≤50.0	2.0 ≤ρ≤7.0
	50.0≤ m ≤100.0	ρ≥7.0
50	10.0≤ m ≤20.0	ρ≤ 0.8
	20.0≤ m ≤50.0	0.8 ≤ρ≤2.0
	50.0≤ m ≤100.0	2.0 ≤ρ≤7.0
100	m ≤ 100.0	ρ≤1.0
100	m ≥ 100.0	ρ≥1.0
250	m ≥ 100.0	ρ≤ 1.0

NOTE: To improve the measurement accuracy, choose a small cylinder volume. .

Note: Specific parameters, please keep in touch with us, as well as related products.

Test Procedure samples

1. Clean the cylinder; 2. the dried sample; 3. Weighing and enter the sample weight; 4. All samples loaded into the cylinder;

5. Complete vibration; 6 reads and input volume; 7. Press 'Calculate' button to complete the calculation; 8. Print Results

There Related Products: FT-100B practical tap densitometer; FZS4-4 Cheap tap density tester; FT-100A Microcomputer Powder Density Tester, FT-104B angle of repose tester
