The company operating the LX-9830E-DC DC voltage drop tester, electric flooded, quality assurance, welcome to consult the discussion.

LX-9830 plug voltage drop tester

LX-9830 plug voltage drop tester Scope: The instrument is suitable for measuring non-reclosing similar wiring connector plug plug plug and lead, etc.

Voltage drop port , In order to determine the merits of wiring ports , You can also check the plug wire bending test times specified in the completion of the standard

After disconnection number. The instrument also applies to the measurement switch contacts, relays, switches, wire harnesses, pressure terminals, connectors and other related products drop test of the instrument has an adjustable high current output , Micro-voltage test , Digital display.

LX-9830 plug voltage drop tester The main parameters:

1 ) Input voltage : AC220V + 10%, 50Hz 2 ) Working current : 0~40A Adjustable

3 ) Voltage drop range : 0 ~ 200mV 4 ) Voltmeter accuracy : ± 1%+3 Characters

5 ) Ammeter Accuracy : ± 1%+3 Characters

Ricoeur instrument Companies' quality-oriented 'service first' operating principles. Meet the needs of our customers. Companies in the 'science and technology, creativity, innovation, progressive' entrepreneurial spirit, the introduction of advanced production equipment and manufacturing processes, through the improvement of continuous technical improvements and management, and strive to provide customers the best quality products and service!

LX-9830 plug voltage drop tester This series of products, there are other models to choose from:

LX-9830 plug voltage drop tester; LX-9830A terminal voltage drop tester;

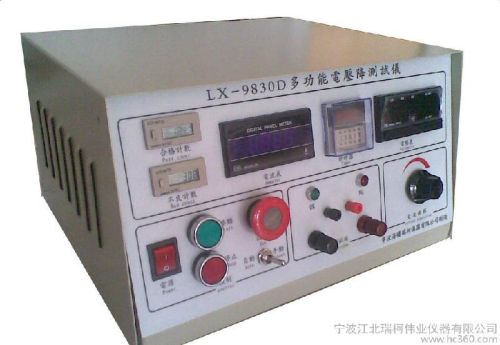

LX-9830B harness voltage drop tester; LX-9830D Multifunction voltage drop tester

LX-9830C contacts drop tester

Scope: The instrument is suitable for measuring the voltage drop test of the switch contacts, relays, switches and other auto-related products.

The instrument has an adjustable high current output , Micro-voltage test , Digital display is simple to operate, user-friendly design.

The main parameters:

1 ) Input voltage : AC220V + 10%, 50Hz 2 ) Working current : DC 0 ~ 40A / 0 ~ 60A / 0 ~ 100A Three test range (choose one)

3 ) Voltage drop range : 0 ~ 999.9mV 4 ) Voltmeter accuracy : ± 1%+3 Characters

5 ) Ammeter Accuracy : ± 1%+3 Characters 6 ) The output voltage: 12v and 24v Adjustable two tranches

LX-9830E-DC DC voltage drop tester

LX-9830E-DC DC voltage drop tester Scope

The instrument for measuring switch contacts, the relays, switches, wire harnesses, pressure terminals, connectors and other related products drop test of the instrument has an adjustable high current output, micro-voltage testing, digital display also apply to technical requirements of similar products.

LX-9830E-DC DC voltage drop tester Instrument parameters

1, input voltage: AC220V ± 10%, 50HZ
2, the operating current: 0-10A (D C) adjustable
3, Millivoltmeter accuracy: four and a half 0-1999.9mv minimum precision 0.1mV

4, meter accuracy: 3 half-word minimum precision 0.1A

5, test the open circuit voltage 3v

LX-9830E-DC DC voltage drop tester Instructions

(I), connect the power cord.

(Ii) the terminal number 1234 in accordance with the access equipment.

(Iii), the terminals 12 are connected to the plug to be tested head, tail; then 34 corresponding to the position of receiving the required test pressure drop between 12

(Iv), turn on the power switch, press the start button.

(V), adjusting the current adjustment knob clockwise adjusted to current needs.

(Vi) to observe the voltmeter, value is the value of the voltage drop on the table.

LX-9830F Large current-measuring instrument DC voltage drop

Scope

The instrument for measuring switch contacts, the relays, switches, wire harnesses, pressure terminals, connectors and other related products drop test of the instrument has an adjustable high current output, micro-voltage testing, digital display also apply to technical requirements of similar products.

First, the instrument parameters:

1, input voltage: AC220V ± 10%, 50HZ
2, the operating current: DC0-300.0A adjustable constant current output maximum output current tolerance ≤ ± 1%
3, Millivoltmeter accuracy: four and a half DC0.1-1000.0mv minimum precision 0.1mV

Digital millivolt table: accuracy class 0.5.

4, meter accuracy: four and a half DC0.1-300.0A minimum precision 0.1A

Accuracy class 0.5.
