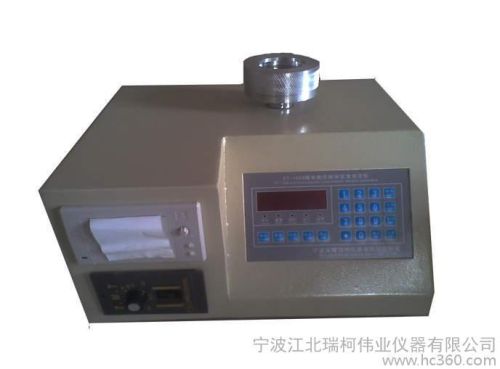

FT-109 bulk density tester polytetrafluoroethylene resin

First, the standard basis: meet HG / T-2900-1997 polytetrafluoroethylene resin bulk density of the test methods required to meet the requirements of ASTM D 1457.

Second, for the determination of bulk density PTFE resin dispersion polymerization method and the suspension of production.

Third, the principle: Quality g 1L measuring the volume of resin under test conditions

Fourth, the instrument consists of electric vibrators, stainless steel feeder, stainless steel funnel, stainless steel mesh, stainless steel measuring cup, cup holder, Calibrating, a table, stopwatch, electrical control box. Speed ​​adjustable, instrument digital display.

Fifth, the main technical parameters:

1. Motor speed requirements: 2750r / mim, 40W

2. Feeder: for export smooth, sieve diameter is 2.26mm (ASTM D 1457 requirements: 2.36mm) stainless steel mesh screen at the top of the chute 2/3.

3. Funnel: With a bezel material and fixed in the feeder at the discharge port

4. cup: 250 ± 0.5ml volume

5. cup holder: ASTM D 1457 requirements: in the cup holder and no overflow vent gas tank, HG / T-2900-1997 requires air vent and overflow tank.

6. Calibrating control: Pitch Requirements: 6 teeth / 25mm, tooth depth: 1.6mm, thickness: 2mm saw blades, the prongs from the cup to the top: 0.8 ± 0.1mm

Ricoeur Albert instruments also provide related products and services, please keep in touch with us
