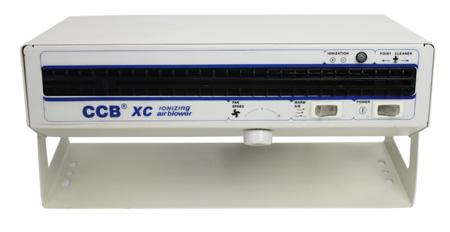

CCB-XC ion fan

bargain

Can provide a balanced ion flow, a wide range of concentrated area static eliminator. May eliminate or neutralize the target or focus on a wide range of contact area is not easy to electrostatic charge. Is a precision electronic products, electronic assembly, pharmaceutical manufacturing assembly lines, printing, packaging and molding the ideal small static eliminator.

CCB-XC

Features:

Wide format ion wind output
Precision ion balance voltage ± 5V
Cold wind design, operation more humane
Protect sensitive electronic components
Improve the operation and effectiveness of the user's comfort
Long-term, stable balance performance
Easy to use plasma needle cleaning brush
Stepless speed control
Ion high-voltage lighting instructions, ease of maintenance
Built-in ion balance voltage up to ± 5V

In addition to electrostatic ion fan speed test table
Test object	XC
Test position	Determination of project	Test distance (front)
Test position	Determination of project	30CM	60CM	90CM	120CM
The left 20CM	+ (Sec)	1.1	2.1	3.3	4.5
	- (second)	1.3	2.4	4.1	5.6
	Ion balance (V)	4	2	-2	2
central	+ (Sec)	0.9	2	2.9	4.2
	- (second)	1.1	2.4	3.6	4.9
	Ion balance (V)	2	-2	2	1
Right side 20CM	+ (Sec)	1.3	2.2	3.5	5.3
	- (second)	1.5	2.7	4.3	5.8
	Ion balance (V)	-3	2	2	2

Technical Parameters
Operating Voltage:	220VAC / 50Hz or 11VAC / 60Hz
Current consumption:	0.26A or 0.52A (unheated) 1.56A or 3.12A (heating)
Operating temperature:	0℃-50℃
Air volume:	80-140 CFM
Airflow area:	400*1200
External dimensions:	D220 * W450 * H190
net weight:	7.0Kg

Winds from the test:		Measuring distance
Winds from the test:	Testing times	30CM	60CM	90CM	120CM
Central (M / S)	I	2.3	1.4	1	0.6
	II	2.7	1.3	1.1	0.7
	III	2.6	1.4	1	0.5

Winds from the test:		Measuring distance
Winds from the test:		30CM	60CM	90CM	120CM
	Left 20cm	2	1.2	1	0.6
	center	2.7	1.6	1.1	0.7
	Right 20cm	2	1.2	1	0.5
