LIER flake ice machine application:
1 Concrete cooling project
2 Fishery and aquatic food processing
3 Mine temperature reduction
4 Food processing
5 Artificial sking ground
6 Medical facilities
7 Dye chemical industry
8 Medium and large chain supermarket
9 Fresh preservation and cooling field application
LIER flake ice feature:
1 The temperature of ice is lower and it can reach 8 celsius degree below zero
2 Ice is dry and transparent, good looking shape, non-caked, good mobility and sanitary.
3 It has the flake shape so that it has big contact area with refrigerating products and the effect is excellent.
4 Flake shape and no sharp edges, cannot destroy refrigerating products and it is beneficial for storage and transportation.
5 The thickness of flake ice is 1.8mm-2.5mm. No need to crush and can use at any time.
LIER flake ice machine advantage:
1. Main parts of refrigerating units are all from America, Germany, Japan and other countries that have leading refrigeration technology.
2. It used spiral efficient evaporator&high-power configulation and has the characteristics of high refrigerating efficiency&less cool losing.
3. The whole system is protected by the alarm of water shortage, ice full, high and low pressure abnormal, power phase inverse and compressor overload, etc. with the computer intelligence control.
4. Ice machine evaporator adopts the fixed static vertical design, The design reduces the wear, has high sealing and avoids the leakage of the refrigerant effectively.
5. Be made of SUS304 material and adopts automatic fluorine welding technology to improve its intensity and accuracy.

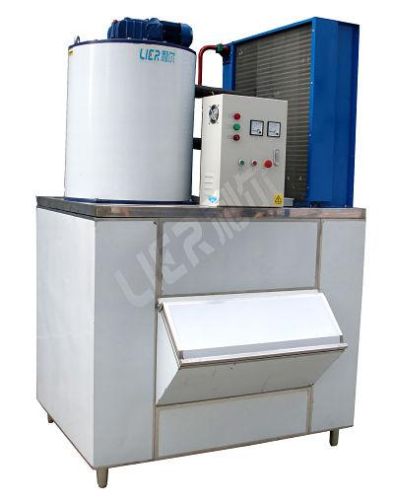

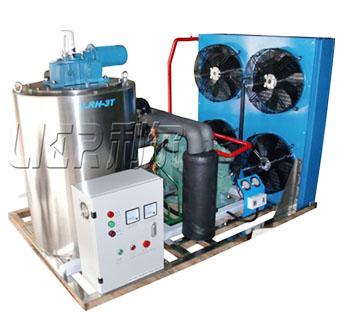

Product technecal parameter:
Model | Ice capacity (kg/ 24h) | Refrigerating capacity (kw) | Power supply | Total power (kw) | refrigerants | Dimension (mm) | Weight (kg) |
LR-02T | 200 | 1.8 | 1P/ 220V/ 60HZ | 1.2 | R22 | 760*730*450 | 115 |
LR-05T | 500 | 3.7 | 3P/ 380V/ 50HZ | 2.5 | R404A/ R507 | 1310*890*780 | 195 |
LR-1T | 1000 | 6.5 | 3P/ 380V/ 50HZ | 4.8 | R404A/ R507 | 1310*970*880 | 227 |
LR-1.2T | 1200 | 7.8 | 3P/ 380V/ 50HZ | 5.4 | R404A/ R507 | 1310*970*980 | 263 |
LR-1.5T | 1500 | 9.8 | 3P/ 380V/ 50HZ | 7.3 | R404A/ R507 | 1310*970*980 | 364 |
LR-2T | 2000 | 13 | 3P/ 380V/ 50HZ | 8.5 | R404A/ R507 | 1500*1095*1040 | 423 |
LR-2.5T | 2500 | 16.2 | 3P/ 380V/ 50HZ | 9.2 | R404A/ R507 | 1500*1095*1200 | 456 |
LR-3T | 3000 | 19.5 | 3P/ 380V/ 50HZ | 12.2 | R404A/ R507 | 1750*1190*1200 | 530 |
LR-4T | 4000 | 26 | 3P/ 380V/ 50HZ | 16.3 | R404A/ R507 | 1700*1650*1250 | 630 |
LR-5T | 5000 | 32.5 | 3P/ 380V/ 50HZ | 19.6 | R404A/ R507 | 1700*1650*1450 | 760 |
LR-6T | 6000 | 39 | 3P/ 380V/ 50HZ | 23.5 | R404A/ R507 | 1700*1650*1450 | 867 |
LR-8T | 8000 | 49 | 3P/ 380V/ 50HZ | 26.6 | R404A/ R507 | 2500*2000*1560 | 968 |
LR-10T | 10000 | 65 | 3P/ 380V/ 50HZ | 32.5 | R404A/ R507 | 2500*2000*1700 | 1260 |
LR-15T | 15000 | 95 | 3P/ 380V/ 50HZ | 58 | R22 | 3100*2160*1865 | 2120 |
LR-20T | 20000 | 130 | 3P/ 380V/ 50HZ | 63 | R22 | 3100*2160*2050 | 2860 |
LR-25T | 25000 | 160 | 3P/ 380V/ 50HZ | 75 | R22 | 3100*2160*2265 | 2940 |
LR-30T | 30000 | 195 | 3P/ 380V/ 50HZ | 86 | R22 | 3500*2700*2350 | 3240 |
