Passive Keyless Entry (PKE)

Approach the car, it will be unlocked automatically. Leave the car away 2.5 meters, it will be locked automatically. If one of the doors was not closed well, it will remind the driver by the horn sounding and turn light flashing.

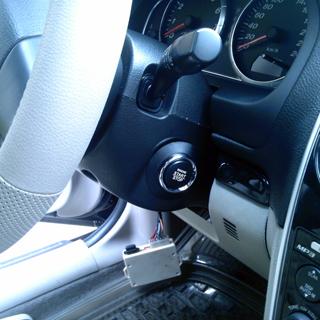

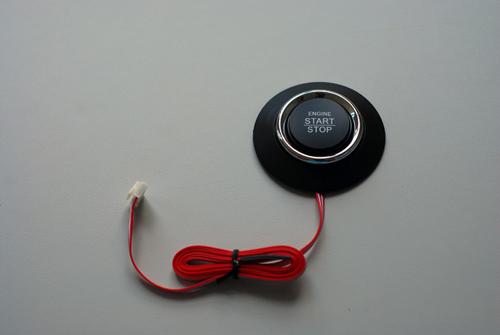

Push the button to start the car

Get on, step on the brake and push the button, the car will be started. Step on the brake and push the button again the engine will be stopped.

Remote Engine Start

Press the LIGHT'button on the remote to start the car. Normally, it is used to make the air conditioner working before driving.

Smart Alarm &Immobilizer

The system arms/ disarms automatically when locking/ unlocking. On arming status, if the car was shocked or one of the doors was opened forcedly, the system will alarm through the car horn and turn light. At the same time, the system will cut off the oil supply of the car to prevent it from stealing.

Windows Can Be Closed Automatically AfterLocking

Some vehicles support this function directly; some need to be installed a Window Closer.

Window Closer: an electrical device which can drive the window motors to close windows by detecting LOCKING signal. It works independently; don't need to connect with our product.

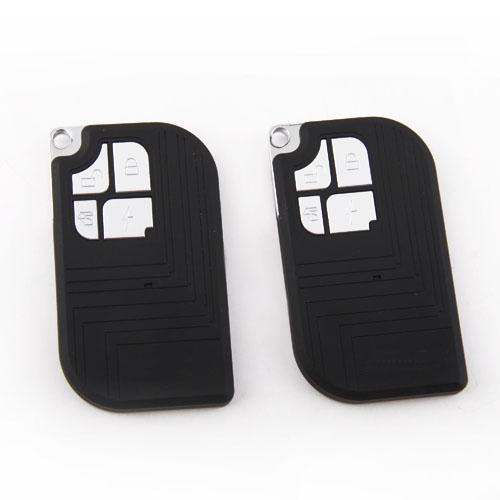

Use the remote to find your car

Press the LOCK'button to make the car sounding and light flashing; this can help you find your car fast.

Use the remote to open car trunk (needmotor-driving trunk)

Press the TRUNK button for a while the system will open the trunk.

Use the remote to suspend PKE function

Press the LOCK'and LIGHT button together to suspend PKE section, automatic functions will bedisabled. Press that two buttons again, PKE will be activated.

Suspending PKE automatically

If the car has been left alone for more than 24 hours, the system will stop finding smart key automatically to decrease electricity consumption.

Locking on First Braking (selectable)

After the car is started, the system will lock car doors. When the car power is turned off, the system will unlock car doors automatically.

As many cars have this kind of function already, this function can be cancelled by the switch on the side of the main unit.

Specifications

Main Unit Working Voltage: DC 9.0V-18.0V
Main Unit Standby Current: (=30mA@12V

LF Detecting Distance: 2m

Smart Key Working Voltage: DC 2.0V~DC 4.0V

Smart Key Standby Current: (=4uA@3V

Working Temperature: -40-+85 Centigrade

Remote Control Distance: 30m
