Automatic Roof Steel Corrugated Tile Roll Forming Machine

Specifications

Steel tile roll forming machine

used in modern architecture roofing

main power: 7.5KW

Transmission: by chain

1) Production Characteristic and use:
Steel tile roll forming machine adopts new station to increase the solidity of the machine; products are widely used in modern architecture roofing, the product increased the housing aesthetics.

A: Roll forming main machine

1: Coil width: 900-1250 mm

2: working speed: 10-15m/ min

3: roll station: 26stations

4: material of roller: 45# steel , polished and coated with chrome

5: material of main shaft: 45#steel, diameter roller: Ф80-100mm

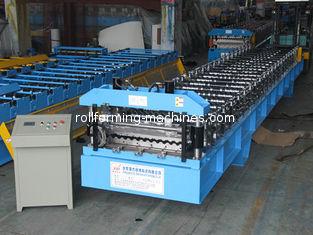

Sample photo for reference:

6: main power: 7.5KW

7: forming thickness: 0.5mm-1.2mm 195Mpa-550Mpa

8: Transmission: by chain

Sample photo for reference:

10: size of machine: 11500x1800x1400 (mm) L x W x H

11: weight: about 10000Kgs

12: Cutting:

(1) Motorized Pre-cutting: It is used when changing the coil of raw material; it can cut the coil rapidly and time-saving. Power: 1.5KW

(2) Cutting after forming: Cut the sheet after roll forming to required length

(3) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

(4) Material of blade: CR12with heat treatment

(5) Length measuring: Automatic length measuring

Working flow: Passive / hydraulic decoiler-guiding&feeding-rollforming-length meaurement-hydraulic cutting-run out table
