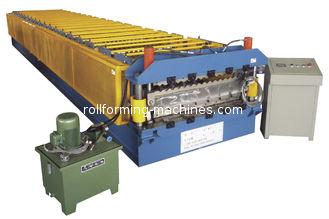

Corrugated Tile Roll Forming Machine, Automatic Roof Steel Tile Roll Forming Machine

1) Production Characteristic and use:
Steel tile roll forming machine adopts new station to increase the solidity of the machine; products are widely used in modern architecture roofing, the product increased the housing aesthetics.

A: Roll forming main machine

1: Coil width: 1220 mm cover width: 1050mm

2: working speed: 5-6m/ min (Include press and cutting)

3: roll station: 21stations

4: material of roller: ASTM52100, polished and coated with chrome

Seller should be providing the material certificate to buyer for inspection.

5: material of main shaft: ASTM1045 diameter roller: Ф76mm

Sample photo for reference:

6: main power: 5.5kw servo motor

7: forming thickness: 0.5mm-0.6mm 195Mpa-235Mpa

8: Transmission: by chain 1.2Inch

9: press system: adopt D2material

Sample photo for reference:

10: size of machine: 11500x1700x1200 (mm) L x W x H

11: weight: about 7000Kgs

12: color: blue

13: seller will provide material to test machine, the end product should be up to 3-5 m at most. When the product is same as signed produce, seller will stop to test the machine.

14: machine adopt individual station

Sample photo for reference:

15: machine should be have four 350mm height legs (joint by screw)

16: feeding and guide: adopt ASTM1045 material, and it is east to adjust the feeding size

Sample photo for reference:

18: complete machine adopt cover: it is insure operator's safe.

19: Cutting:

(1) Motorized Pre-cutting: It is used when changing the coil of raw material; it can cut the coil rapidly and time-saving. Power: 1.5KW

Sample photo for reference:

(2) Cutting after forming: Cut the sheet after roll forming to required length

(3) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

(4) Material of blade: CR12with heat treatment

(5) Length measuring: Automatic length measuring

(6) Tolerance of length: 3m +/ - 1.5mm

Sample photo for reference:
