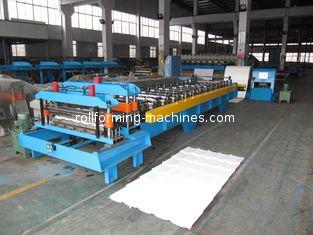

Step Tile Roll Forming Machine , Glazed Corrugated Roll Forming Machine

Specifications:

1) Production Characteristic and use:
Steel tile roll forming machine adopts new station to increase the solidity of the machine; products are widely used in modern architecture roofing, the product increased the housing aesthetics.

2) Main Technical Specification:
①thickness: 0.3-0.8mm
speed: 2-4m/ min
roll station: 14stations (depend on the profile)
main power: 7KW

hydraulic power: 5KW
control system: PLC Panasonic
Drive: by chain

Working flow: Decoiling→/ rollforming→/ pressing and cutting→/ run out table
