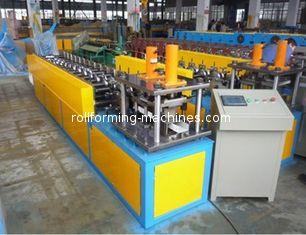

Main Channel Stud Roll Forming Machine, 5.5KW Automatic Metal Forming Machine

1: size of machine: 6000x800x1200 (mm) L x W x H

2: working speed: 12m-15m/ min (not contain cutting)

3: roll station: 11stations

4: material of roller: Gcr15 forge steel, polished and coated with chrome HRC58-62°

5: material of main shaft: 45﹟forge steel diameter roller: Ф56mm

6: main power: 5.5kw

7: forming thickness: 0.5mm-1.5mm color steel and galvanized steel

8: Transmission: by Chains 1.0 inch single line

9: Coil width: base on customer profile (in mm)

10: weight: about 4000Kgs

11: color of machine: blue and yellow

12: Cutting:

(1) Machine adopt hydraulic cutting

(2) Cutting after forming: Cut the sheet after roll forming to required length

(3) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

(4) Material of blade: CR12with heat treatment 2 SETS cutters

(5) Length measuring: Automatic length measuring

(6) Tolerance of length: 3m +/ - 1.5mm
