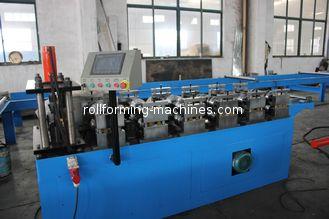

Steel Track Roll Forming Machine, Metal Stud Roll Forming Machine with Hydraulic Cutting

Ⅰ: Composition of machine

Roll forming main machine. . . . . . . . . . . 1 unit

Manual de-coiler. . . . . . . . . . . . . . . 1 unit

Control panel. . . . . . . . . . . . . . . . . 1 unit

Hydraulic station. . . . . . . . . . . . . . . 1 unit

Manual out table. . . . . . . . . . . . . . . . 2 unit

Spare tools. . . . . . . . . . . . . . . . . . . . one box

Ⅱ: Details of each composition

A: Roll forming main machine

1: Coil width: base on customer profile (in mm)

2: working speed: 12m-15m/ min (not contain cutting)

3: roll station: 12stations

4: material of roller: Gcr15 forge steel, polished and coated with chrome HRC58-62°

5: material of main shaft: 45﹟forge steel diameter roller: Ф56mm

6: main power: 5.5kw

7: forming thickness: 0.5mm-1.5mm color steel and galvanized steel

8: Transmission: by Chains 1.0 inch single line

9: size of machine: 6000x800x1200 (mm) L x W x H

10: weight: about 4000Kgs

11: color of machine: blue and yellow

12: Cutting:

(1) Machine adopt hydraulic cutting

(2) Cutting after forming: Cut the sheet after roll forming to required length

(3) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

(4) Material of blade: CR12with heat treatment 4SETS cutters

(5) Length measuring: Automatic length measuring

(6) Tolerance of length: 3m +/ - 1.5mm
