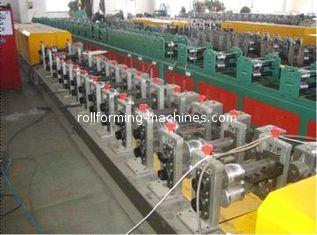

Automatic Metal Roll Forming Machine, Garage Door Steel Roll Forming Machines

1: Coil width: depend on customer request profile
2: working speed: 12m-15m/ min (not contain cutting)
3: roll station: 14 stations
4: material of roller: 45#forge steel, polished and coated with chrome
5: material of main shaft: 45﹟forge steel diameter roller: Ф56mm
6: main power: 4kw
7: forming thickness: 0.5mm-1.2mm color steel and galvanized steel
8: Transmission: by Chains 1 inch
9: Cutting:
(1) Cutting after forming: Cut the sheet after roll forming to required length
(2) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(3) Material of blade: CR12with heat treatment
(4) Length measuring: Automatic length measuring
(5) Tolerance of length: +/ - 1.5mm
