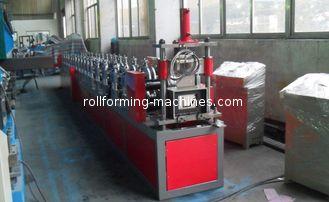

375MM Coil Gutter Forming Machine, Steel Gutter Roll Forming Machine With 18 Stations

Ⅰ: Composition of machine

Roll forming main machine. . . . . . . . . . . 1 unit

Manual de-coiler. . . . . . . . . . . . . . . 1 unit

Control panel. . . . . . . . . . . . . . . . . 1 unit

Hydraulic station. . . . . . . . . . . . . . . 1 unit

Manual out table. . . . . . . . . . . . . . . . 2 unit

Spare tools. . . . . . . . . . . . . . . . . . . . one box

Ⅱ: Details of each composition

A: Roll forming main machine

1: Coil width: about 375MM

2: working speed: 0m-15m/ min (not contain cutting)

3: roll station: 18 stations

4: material of roller: 45#forge steel, polished and coated with chrome

5: material of main shaft: 45﹟forge steel diameter roller: Ф76mm

6: main power: 5.5kw

7: forming thickness: 0.4-0.6mm color steel

8: Transmission: by Chains

9: size of machine: about 18 stations

10: feeding and guide: adopt hand wheel to easy adjust the feeding with
