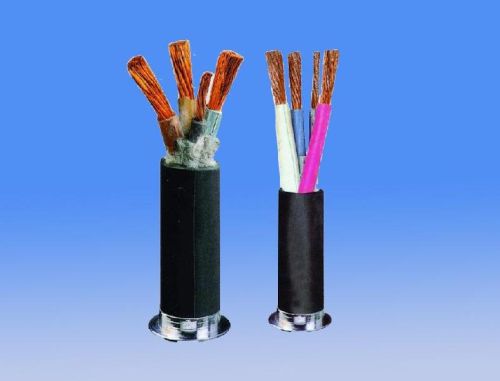

Supply (Wirth) KFFP oil temperature cable

bargain

Product Name: temperature, oil cable

product manual:

Scope

This product is suitable for industrial and mining metallurgy, petroleum, chemical and power plants, etc., at high temperatures and in harsh environments (such as acids, alkalis, oil and water temperature conditions) as a variety of cable electrical, instrumentation and automatic devices of, for AC rated voltage 450/750 volts and under control, using the following monitoring and protection circuits luggage occasions.

Type and Name:

No.	model	name
1	KFF	Fluorine plastic insulated and sheathed control cable
2	KFFP	Fluorine plastic insulated and sheathed shield control cable
3	KFFR	Fluorine plastic insulated and sheathed control cable
4	KFFRP	Fluorine plastic insulated and sheathed shielded flexible control cable
5	KFV	Fluorine plastic insulated PVC sheathed control cable
6	KFVP	Fluorine plastic insulation and PVC sheath shield control cable
7	KFVR	Fluorine plastic insulated PVC sheathed control flexible cable
8	KFVRP	Fluorine plastic insulation and PVC jacket shielded flexible control cable
9	KFV22	Fluorine plastic insulated PVC sheathed control cable
10	KFVP22	Fluorine plastic insulated PVC sheathed shield control cable
11	KFVR22	Fluorine plastic insulated PVC sheathed control cable
12	KFVRP22	Fluorine plastic insulated PVC sheathed shielded flexible control cable
13	KFFV22	Fluorine plastic insulation and inner PVC sheathed steel tape armored control cable
14	KFFRV22	Fluorine plastic insulation and inner sheath PVC outer sheathed control cable

Use features:

1, Rated voltage: AC Uo / U; 450 / 750V

2, the working temperature: No. 1 ~ 4 -60 ~ + 200 ℃

No. 5 ~ 14 -15 ~ + 105 ℃

3, insulation resistance (20 ℃) is not less than 50MΩ • km

4, conductor wire core DC resistance (20 ℃) in line with the provisions of GB3956-97

5, no armored cable bending radius of not less than 6 times the cable diameter, armored cable bending radius of not less than 12 times the cable diameter.

6. Minimum installation laying temperature: No. 1 ~ 4 -45 ℃

No. 5 ~ 14 0 ℃
