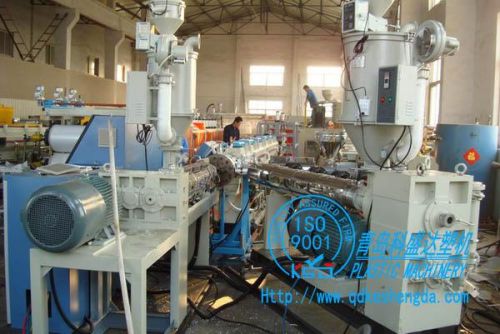

SJ65 / 50 three PPR pipe extrusion machine

SJ65 / 50 three PPR pipe extrusion machine Enhanced co-extruded PP-R PP-R pipe ABA form the middle layer of fiberglass Production diameter 20253240506375mm, using our unique spiral design Three co-extruded Mold spiral Split nose, it can be equipped with a static mixing system, the material layer is sufficiently superimposed on each other, compared with the conventional spider die, the inner wall of the pressure distribution more uniform Extruder: According to the company PPR, PPB unique processing performance design manufacture of high efficiency extruder, with hardened gearbox, the new grooved barrel,, BM screw extrusion capacity, low-temperature melting materials, energy-saving effect is remarkable.

SJ65 / 50 three PPR pipe extrusion machine The main technical parameters:

model	SJ50 / 45/45/30	SJ65 / 50/50/30	SJ90 / 65/65/30
material	PP-R and masterbatch	PP-R and masterbatch	PP-R and masterbatch
Extruder Model	SJ50 / 30 SJ 45/30 30/25	SJ65 / 32 SJ50 / 32 SJ30 / 25	SJ90 / 32 SJ65 / 32 SJ30 / 25
Production Diameter (mm)	ABC form 16-20-25-32-40-50	ABC in the form of Form 16-20-25-32-40-50-63	ABC form 50-63-75-110-160
Motor Power	15-22kw	15-37kw	22-55kw
Yield	100kg / h	150 kg / h	250kg / h

Contact: Liu
Tel: 86-0532-87255588 13864237789
Fax: 86-0532-82271877
Contact Address: Qingdao Jiaozhou Road 288 Yangzhou
