Shengda Plastic Machinery Co., Ltd. Qingdao Branch is located in Jiaozhou, Shandong Province, is a major producer of plastic extrusion machinery professional equipment manufacturers, the main products: a new environmentally friendly PE, PP, PVC wood-plastic profile production line, plastic hollow grid board production line, PP- R hot and cold water pipe production line, PVC water supply and drainage, threading pipe production line, PE gas supply pipe production line, hollow wall winding pipe production line, PVC transparent film material production line, PP, PE, PVC, PC, ABS plastic plate sheet, wood board sheet production line, WPC building template extrusion lines, etc. The company always follow the 'good faith, ...

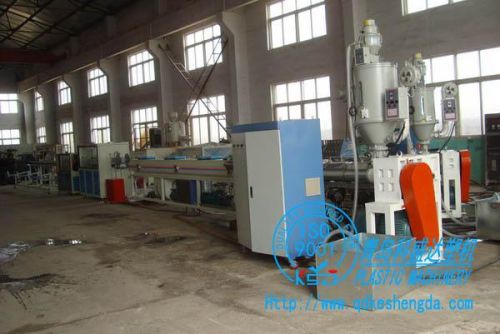

Layer PP-R pipe equipment

Layer PP-R pipe equipment For the production of glass fiber PP-R (referred to as FR / PP-R) pipe is used through special multi-layer co-extrusion technology and equipment, high-speed production of high-performance low-temperature pipe, keeping the product in the original PP-R products on the basis of merit and, also has the following major features: linear expansion coefficient of only about 20 to 30% of the ordinary PP-R products; completely solve the problem of plastic pipe stretching rigid pipe reinforced to prevent sagging pipeline, while also reducing the fixed anchor. density and quantity, thus reducing the overall cost of the project higher pressure rating, longer life under normal tremor force design better high temperature performance, save energy effect is obvious;.. FR / PP-R application in heat water system, the normal operating temperature of up to 95 ~ 100 ℃, both to improve the use of the medium temperature, but also reduce the thickness of the insulation materials, lower their overall costs. Layer PP-R pipe equipment The main technical parameters:

model	SJ50 / 45/45/30	SJ65 / 50/50/30	SJ90 / 65/65/30
material	PP-R and masterbatch	PP-R and masterbatch	PP-R and masterbatch
Extruder Model	SJ50 / 30 SJ 45/30 30/25	SJ65 / 32 SJ50 / 32 SJ30 / 25	SJ90 / 32 SJ65 / 32 SJ30 / 25
Production Diameter (mm)	ABC form 16-20-25-32-40-50	ABC in the form of Form 16-20-25-32-40-50-63	ABC form 50-63-75-110-160
Motor Power	15-22kw	15-37kw	22-55kw
Yield	100kg / h	150 kg / h	250kg / h

Contact: Liu
Tel: 86-0532-87255588 13864237789
Fax: 86-0532-82271877
Contact Address: Qingdao Jiaozhou Road 288 Yangzhou
