Shengda Plastic Machinery Co., Ltd. Qingdao Branch is located in Jiaozhou, Shandong Province, is a major producer of plastic extrusion machinery professional equipment manufacturers, the main products: a new environmentally friendly PE, PP, PVC wood-plastic profile production line, plastic hollow grid board production line, PP- R hot and cold water pipe production line, PVC water supply and drainage, threading pipe production line, PE gas supply pipe production line, hollow wall winding pipe production line, PVC transparent film material production line, PP, PE, PVC, PC, ABS plastic plate sheet, wood board sheet production line, WPC building template extrusion lines, etc. The company always follow the 'good faith, ...

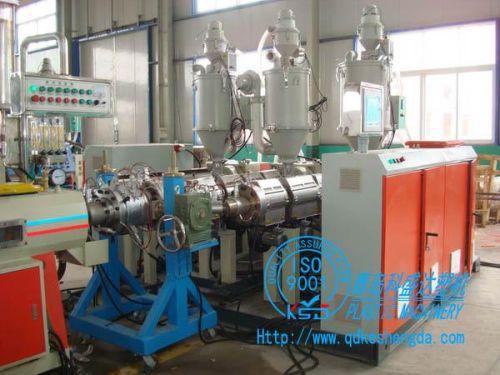

50-160 PPR hot and cold water coextrusion equipment

50-160 PPR hot and cold water coextrusion equipment ABA or ABC in the form of PPR pipe, an intermediate reinforcing layer of glass fiber according to certain rules of order, and the inner and outer PPR layer of an organic fusion as a whole, significantly overcome the overhanging phenomenon pure PPR pipe surface mounted when, reducing the coefficient of linear expansion of the pipe. And same size, same pressure rating compared to pure PPR pipe, save material, reduce costs and become more competitive on the production line with a fully automatic vacuum feeder, automatic temperature dryer;. specially designed vacuum sizing and cooling system, water tank stainless steel plate, multi-stage water-cooling mode to ensure high-speed production of large diameter thick-walled tube and pipe requirements. gearbox high torque, inverter, programmable controllers, touch screen, electric control system, printer etc. imported brand-name products. The new Chipless automatic cutting saws, cutting section smooth, high precision, low noise and. 50-160 PPR hot and cold water coextrusion equipment of a machine can produce HDPE silicon core tube, ordinary PPR, PE, PEX Pipe Providing formulation process and turnkey projects. 50-160 PPR hot and cold water coextrusion equipment The main technical parameters:

model	SJ50 / 45/45/30	SJ65 / 50/50/30	SJ90 / 65/65/30
material	PP-R and masterbatch	PP-R and masterbatch	PP-R and masterbatch
Extruder Model	SJ50 / 30 SJ 45/30 30/25	SJ65 / 32 SJ50 / 32 SJ30 / 25	SJ90 / 32 SJ65 / 32 SJ30 / 25
Production Diameter (mm)	ABC form 16-20-25-32-40-50	ABC in the form of Form 16-20-25-32-40-50-63	ABC form 50-63-75-110-160
Motor Power	15-22kw	15-37kw	22-55kw
Yield	100kg / h	150 kg / h	250kg / h

Contact: Liu
Tel: 86-0532-87255588 13864237789
Fax: 86-0532-82271877
Contact Address: Qingdao Jiaozhou Road 288 Yangzhou
